Weight	8 kg
Dimensions	230 × 230 × 80 mm
Nominal cross section conductor	6mm2
Material core insulation	Polyvinyl chloride (PVC)
Core identification	Colour
Weight	63kg/km
Flame retardant	According to IEC/EN 60332-1-2
Circuit integrity	None
Nominal voltage U	750V
Shape of conductor	Round
Conductor material	Copper
Material outer sheath	None
Conductor category	Class 1 = solid
Armouring/reinforcement	None
Permitted cable outer temperature during assembling/handling	-5°C
Permitted cable outer temperature after assembling without vibration	-40°C
Core colour	Several
Nominal voltage U0	450V
Max. conductor temperature	70°C
Protective barrier	None
Outer diameter approx.	4.22mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	5mm
Specification core insulation	Other
Cable geometry	Round
Identification/coding colour core	Other
Brand	NKT
SKU	3049206
EAN	5907802036198

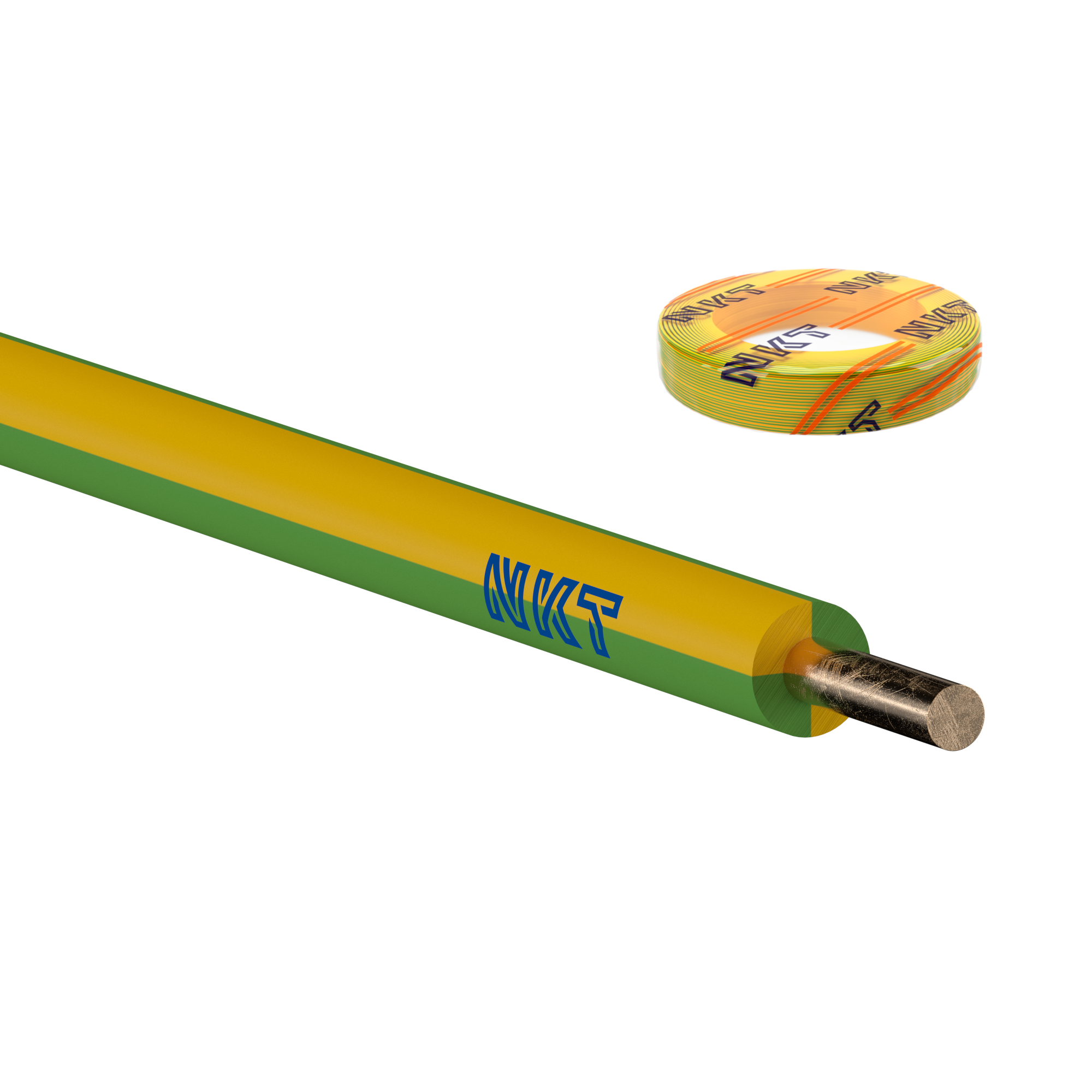

H07V-U DY 6.0 ŻO SINGLE CONDUCTOR WIRE 450/750V CL.1
