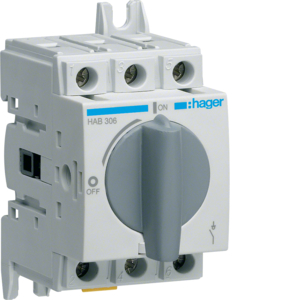

HAB306 LOAD BREAK SWITCH 63A 3P 400V AC

Name: HAB306 LOAD BREAK SWITCH 63A 3P 400V AC
Brand: HAGER
SKU: 084148
Availability: InStock

56,29 € VAT incl.

VAT incl. (21%)

Part No: HAB306

Brand: HAGER

1 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

Modułowy rozłącznik izolacyjny obrotowy, 3-biegunowy, 63 A, rozmiar 1

Additional information

Weight	0,219 kg
Dimensions	11 × 8,5 × 6,5 mm
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated permanent current Iu	63A
Number of poles	3
Rated operating voltage	380V
Conditioned rated short-circuit current Iq	50kA
Degree of protection (IP), front side	IP20
Number of auxiliary contacts as change-over contact	0
Number of switches	1
Type of electrical connection of main circuit	Screw connection
Type of control element	Short thumb-grip
Rated operation power at AC-23, 400 V	28kW
Rated short-time withstand current lcw	1.26kA
Colour control element	Grey
Max. rated operation voltage Ue AC	415V
Device construction	Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V	63A
Switching power at 400 V	41kW
Rated permanent current at AC-23, 400 V	40A
Degree of protection (NEMA)	Other
Brand	HAGER
SKU	084148
EAN	3250613140267
