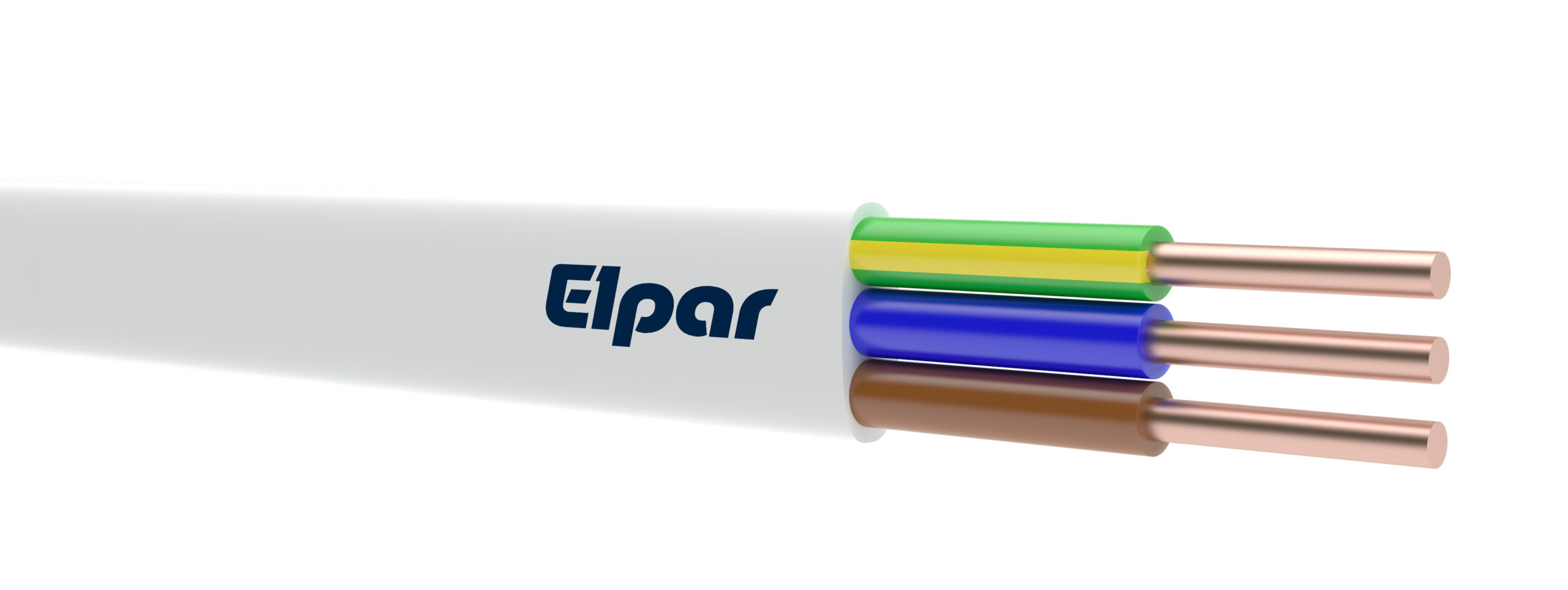

HDHP-J 3X 1.5 HALOGEN-FREE CABLE 450/750V B2CA

Name: HDHP-J 3X 1.5 HALOGEN-FREE CABLE 450/750V B2CA
Brand: ELPAR
SKU: 925804
Availability: InStock

1095,53 € VAT incl.

VAT incl. (21%)

RRP price: 1811,04 €

Part No: HDHP-J7-3X1,5(B2CA)

Brand: ELPAR

Delivery time 3-5 working days.

For your home.

Fast support.

Additional information

Nominal cross section conductor	1.5mm2
Material core insulation	Other
Core identification	Colour
Circuit integrity	None
Nominal voltage U	750V
Colour outer sheath	White
Shape of conductor	Round
Conductor material	Copper
Material outer sheath	Polyolefin
Conductor category	Class 1 = solid
Armouring/reinforcement	None
Permitted cable outer temperature during assembling/handling	-5°C
Core colour	Several
Nominal voltage U0	450V
Number of cores	3
Max. conductor temperature	70°C
Protective barrier	None
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	B2ca
Reaction-to-fire according to EN 13501-6: Smoke production	s1a
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	d0
Reaction-to-fire according to EN 13501-6: Acidity	a1
Min. permitted bending radius, stationary application/permanent installation	64.2mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Flat
Brand	ELPAR
SKU	925804
EAN	5901854435374
