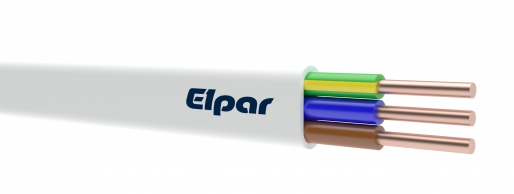

HDHP-J 4X 1.5 HALOGEN-FREE CABLE 450/750V B2CA

Name: HDHP-J 4X 1.5 HALOGEN-FREE CABLE 450/750V B2CA
Brand: ELPAR
SKU: 889834
Availability: InStock

1405,45 € VAT incl.

VAT incl. (21%)

RRP price: 2187,95 €

Part No: HDHP-J7-4X1,5(B2CA)

Brand: ELPAR

Delivery time 3-5 working days.

For your home.

Fast support.

Additional information

Weight	8 kg
Dimensions	320 × 320 × 100 mm
Nominal cross section conductor	1.5mm2
Material core insulation	Other
Core identification	Colour
Circuit integrity	None
Nominal voltage U	750V
Colour outer sheath	White
Shape of conductor	Round
Conductor material	Copper
Material outer sheath	Polyolefin
Conductor category	Class 1 = solid
Armouring/reinforcement	None
Permitted cable outer temperature during assembling/handling	-5°C
Core colour	Several
Nominal voltage U0	450V
Number of cores	4
Max. conductor temperature	70°C
Protective barrier	None
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	B2ca
Reaction-to-fire according to EN 13501-6: Smoke production	s1a
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	d0
Reaction-to-fire according to EN 13501-6: Acidity	a1
Min. permitted bending radius, stationary application/permanent installation	80.4mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Flat
Brand	ELPAR
SKU	889834
EAN	5901854435428
