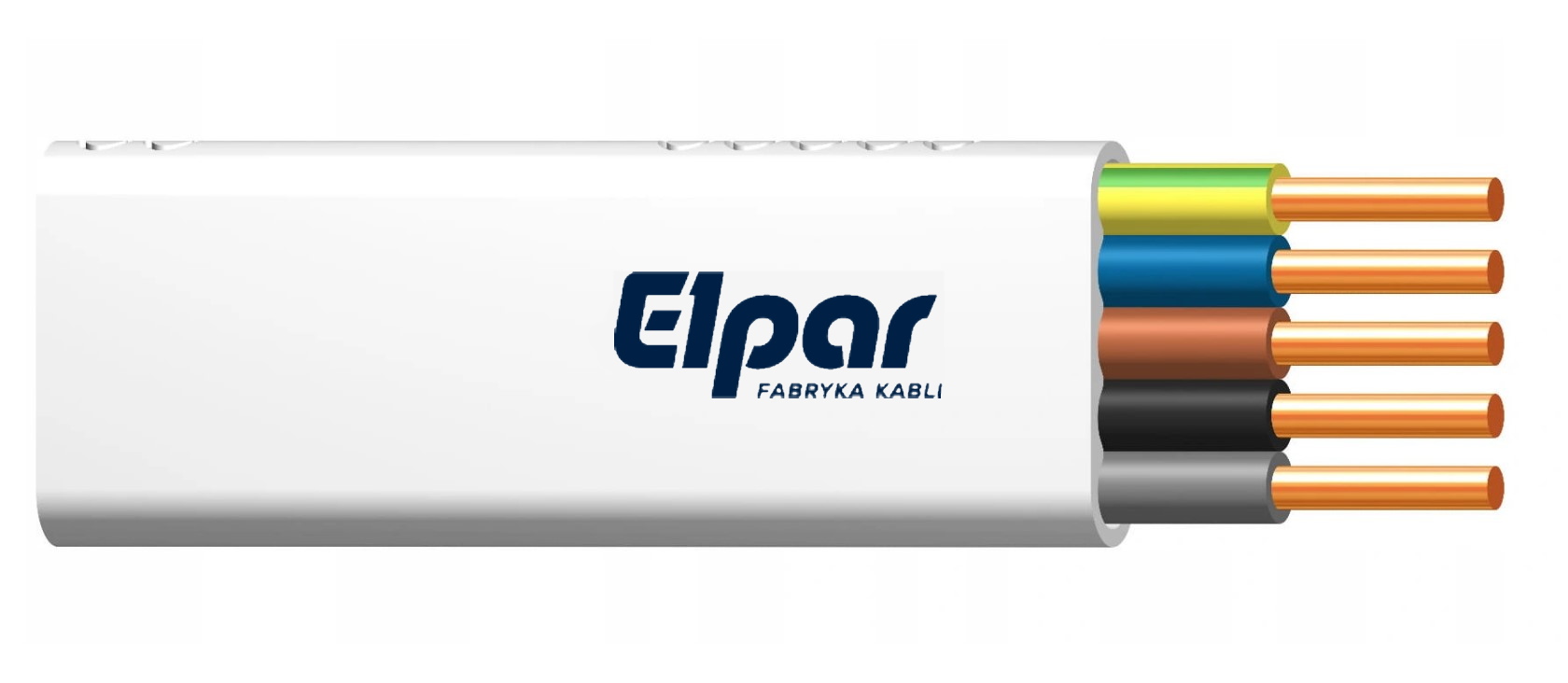

HDHP-J 5X 4.0 WHITE INSTALLATION CABLE FLAT WIRE 450/750 CL.1 B2CA
6053,56 € VAT incl.
- VAT excl.
5002,94 € VAT excl.
VAT incl. (21%)
Part No:
HDHP-J7-5X4(B2CA)
Brand:
ELPAR
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Request the product
Description
Flat cables used in electrical installations inside buildings. They facilitate installation under plaster and in installation channels. They are used in apartments, offices and large buildings.
Additional information
| Nominal cross section conductor |
4mm2 |
|---|---|
| Core insulation material |
Polyolefin |
| Core identification |
Colour |
| Weight |
335kg/km |
| Drain wire |
Yes |
| Nominal voltage U |
750V |
| Color of coating/insulation |
White |
| Shape of conductor |
Round |
| Conductor material |
Copper |
| Material outer sheath |
Polyolefin |
| Conductor category |
Class 1 = solid |
| Armouring/reinforcement |
None |
| Permissible ambient temperature of the cable during installation |
-5°C |
| Core colour |
White |
| Nominal voltage U0 |
450V |
| Screen |
No |
| Number of cores |
5 |
| For underground installations |
No |
| Halogen-free according to IEC 60754-2 |
Yes |
| Cable width approx. |
21.6mm |
| Cable height approx. |
6.4mm |
| Low smoke emissions in accordance with IEC 61034-2 |
Yes |
| Maximum allowable core temperature |
70°C |
| Protective barrier |
None |
| Oil-resistant (according to IEC 60811-404) |
No |
| Low temperature resistant according to EN 60811-504+505+506 |
No |
| Conductor surface |
Bare |
| Reaction-to-fire according to EN 13501-6: Class |
Dca |
| Reaction-to-fire according to EN 13501-6: Smoke production |
s1a |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles |
d0 |
| Reaction-to-fire according to EN 13501-6: Acidity |
a1 |
| AWG size |
Other |
| Min. permitted bending radius, stationary application/permanent installation |
129.6mm |
| Specification core insulation |
Other |
| Specification material outer sheath |
Other |
| Twisted cores |
No |
| Cable geometry |
Flat |
| Suitable as installation cable |
Yes |
| Certified for shipboard application |
No |
| Certified as airport lighting cable |
No |
| Cable packaging |
Puck |
| Commercial designation |
HDHP |
| Fire resistance according to IEC 60332-1-2 |
Yes |
| Fire resistance according to IEC 60332-3-24 (cat. C) |
Yes |
| Halogen-free according to IEC 60754-1 |
Yes |
| Brand | |
| SKU | 3030798 |
| EAN | 5901854435480 |
