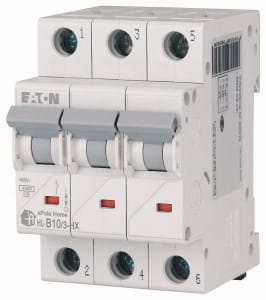

HN-B10/3 B 10A 3P OVERCURRENT CIRCUIT BREAKER B 10A 3M 6KA

Name: HN-B10/3 B 10A 3P OVERCURRENT CIRCUIT BREAKER B 10A 3M 6KA
Brand: EATON
SKU: 836498
Availability: InStock

24,31 € VAT incl.

VAT incl. (21%)

Part No: 194879

Brand: EATON

38 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Additional information

Weight	0,371 kg
Dimensions	75,5 × 52,5 × 80 mm
Voltage type	AC
Built-in depth	44mm
Rated current	10A
Rated voltage	230V
Frequency	50Hz
Release characteristic	B
Rated insulation voltage Ui	440V
Current limiting class	3
Over voltage category	3
Pollution degree	3
Width in number of modular spacings	3
Degree of protection (IP)	IP20
Number of protected poles	3
Connectable conductor cross section solid-core	1mm2
Connectable conductor cross section multi-wired	1mm2
Ambient temperature during operating	-25°C
Number of poles (total)	3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	0kA
Rated impulse withstand voltage Uimp	4kV
Brand	EATON
SKU	836498
EAN	9010238063631
