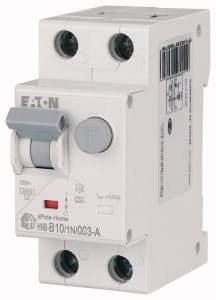

HNB-B16/1N/003-A B16A/ 30MA/A 1P+N DIFFERENTIAL CIRCUIT BREAKER B16A 30MA 2M A 6KA
82,32 € VAT incl.
- VAT excl.
68,03 € VAT excl.
VAT incl. (21%)
Part No:
195133
Brand:
EATON
200 in stock
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Additional information
| Weight | 0,21 kg |
|---|---|
| Dimensions | 73 × 85 × 36 mm |
| Voltage type |
AC |
| Built-in depth |
69.5mm |
| Rated current |
16A |
| Rated voltage |
230V |
| Release characteristic |
B |
| Rated insulation voltage Ui |
500V |
| Rated fault current |
0.03A |
| Leakage current type |
A |
| Surge current capacity |
0.25kA |
| Current limiting class |
3 |
| Over voltage category |
3 |
| Pollution degree |
2 |
| Width in number of modular spacings |
2 |
| Frequency |
50 Hz |
| Degree of protection (IP) |
IP20 |
| Number of protected poles |
1 |
| Rated short-circuit breaking capacity according to IEC 60947-2 |
0kA |
| Connectable conductor cross section solid-core |
1mm2 |
| Connectable conductor cross section multi-wired |
1mm2 |
| Ambient temperature during operating |
-25°C |
| Number of poles (total) |
2 |
| Rated impulse withstand voltage Uimp |
4kV |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 |
6kA |
| Disconnection characteristic |
Undelayed |
| Rated short-circuit breaking capacity according to EN 61009 |
6kA |
| Brand | |
| SKU | 836557 |
| EAN | 9010238060968 |
