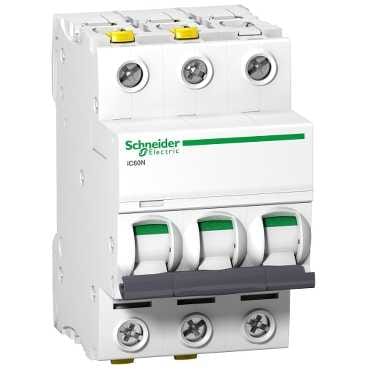

IC60N B 63A 3P OVERCURRENT CIRCUIT BREAKER B 63A 3M 6KA ACTI 9

Name: IC60N B 63A 3P OVERCURRENT CIRCUIT BREAKER B 63A 3M 6KA ACTI 9
Brand: SCHNEIDER ELECTRIC
SKU: 501994
Availability: InStock

55,65 € VAT incl.

VAT incl. (21%)

Part No: A9F03363

Brand: SCHNEIDER ELECTRIC

2 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

WYŁ. NADPR. IC60N 3P 63A B ACTI 9

Additional information

Weight	0,384 kg
Dimensions	90 × 70 × 53 mm
Frequency	50Hz
Voltage type	AC/DC
Built-in depth	44.5mm
Rated current	63A
Rated voltage	400V
Release characteristic	B
Rated insulation voltage Ui	500V
Current limiting class	3
Over voltage category	4
Pollution degree	3
Width in number of modular spacings	3
Degree of protection (IP)	IP20
Number of protected poles	3
Rated short-circuit breaking capacity according to EN 60898	6kA
Rated short-circuit breaking capacity according to IEC 60947-2	10kA
Connectable conductor cross section solid-core	1mm2
Connectable conductor cross section multi-wired	1mm2
Ambient temperature during operating	-35°C
Number of poles (total)	3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	20kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	10kA
Rated impulse withstand voltage Uimp	6kV
Brand	SCHNEIDER ELECTRIC
SKU	501994
EAN	3606480439988
