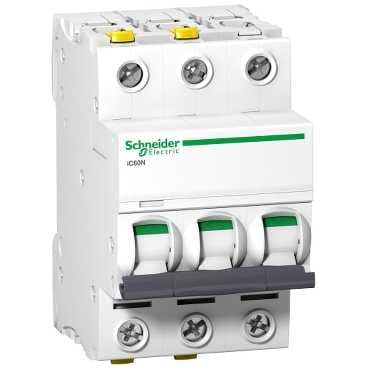

IC60N C 40A 3P OVERCURRENT CIRCUIT BREAKER C 40A 3M 6KA ACTI 9

Name: IC60N C 40A 3P OVERCURRENT CIRCUIT BREAKER C 40A 3M 6KA ACTI 9
Brand: SCHNEIDER ELECTRIC
SKU: 501966
Availability: InStock

28,94 € VAT incl.

VAT incl. (21%)

RRP price: 67,05 €

Part No: A9F04340

Brand: SCHNEIDER ELECTRIC

85 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

WYŁ. NADPR. IC60N 3P 40A C ACTI 9

Additional information

Weight	0,372 kg
Dimensions	90 × 75 × 50 mm
Frequency	50Hz
Voltage type	AC/DC
Built-in depth	44.5mm
Rated current	40A
Rated voltage	400V
Release characteristic	C
Rated insulation voltage Ui	500V
Current limiting class	3
Over voltage category	4
Pollution degree	3
Width in number of modular spacings	3
Degree of protection (IP)	IP20
Number of protected poles	3
Rated short-circuit breaking capacity according to EN 60898	6kA
Rated short-circuit breaking capacity according to IEC 60947-2	10kA
Connectable conductor cross section solid-core	1mm2
Connectable conductor cross section multi-wired	1mm2
Ambient temperature during operating	-35°C
Number of poles (total)	3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	20kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	10kA
Rated impulse withstand voltage Uimp	6kV
Brand	SCHNEIDER ELECTRIC
SKU	501966
EAN	3606480440700
