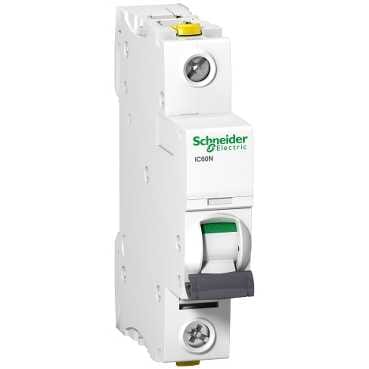

IC60N C 4A 1P OVERCURRENT CIRCUIT BREAKER C 4A 1M 6KA ACTI 9

Name: IC60N C 4A 1P OVERCURRENT CIRCUIT BREAKER C 4A 1M 6KA ACTI 9
Brand: SCHNEIDER ELECTRIC
SKU: 501953
Availability: InStock

7,38 € VAT incl.

VAT incl. (21%)

RRP price: 17,09 €

Part No: A9F04104

Brand: SCHNEIDER ELECTRIC

18 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

WYŁ. NADPR. IC60N 1P 4A C ACTI 9

Additional information

Weight	0,116 kg
Dimensions	85 × 70 × 16 mm
Frequency	50Hz
Voltage type	AC/DC
Built-in depth	44.5mm
Rated current	4A
Rated voltage	230V
Release characteristic	C
Rated insulation voltage Ui	500V
Current limiting class	3
Over voltage category	4
Pollution degree	3
Width in number of modular spacings	1
Degree of protection (IP)	IP20
Number of protected poles	1
Rated short-circuit breaking capacity according to EN 60898	6kA
Rated short-circuit breaking capacity according to IEC 60947-2	50kA
Connectable conductor cross section solid-core	1mm2
Connectable conductor cross section multi-wired	1mm2
Ambient temperature during operating	-35°C
Number of poles (total)	1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	50kA
Rated impulse withstand voltage Uimp	6kV
Brand	SCHNEIDER ELECTRIC
SKU	501953
EAN	3606480440328
