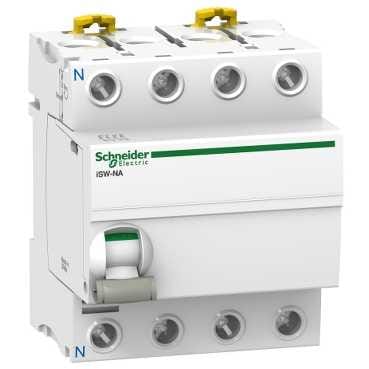

IID 40A/ 30MA/A 4P DIFFERENTIAL SWITCH 40A 30MA 4M A 10KA ACTI 9

Name: IID 40A/ 30MA/A 4P DIFFERENTIAL SWITCH 40A 30MA 4M A 10KA ACTI 9
Brand: SCHNEIDER ELECTRIC
SKU: 509443
Availability: InStock

100,72 € VAT incl.

VAT incl. (21%)

Part No: A9Z21440

Brand: SCHNEIDER ELECTRIC

131 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

WYŁ.RÓŻN-PRĄD. IID 4P 40A 30MA TYP A ROZDZIAŁ ENERGII: DO 160A I DO 630A

Additional information

Weight	0,379 kg
Dimensions	80 × 85 × 100 mm
Mounting method	DIN rail
Voltage type	AC
Built-in depth	44mm
Rated current	40A
Rated voltage	400V
Rated insulation voltage Ui	500V
Number of poles	4
Rated fault current	0.03A
Leakage current type	A
Surge current capacity	0.25kA
Pollution degree	3
Width in number of modular spacings	4
Frequency	50/60 Hz
Degree of protection (IP)	IP20
Connectable conductor cross section solid-core	1mm2
Connectable conductor cross section multi-wired	1mm2
Ambient temperature during operating	-25°C
Rated impulse withstand voltage Uimp	6kV
Brand	SCHNEIDER ELECTRIC
SKU	509443
EAN	3606480443206
