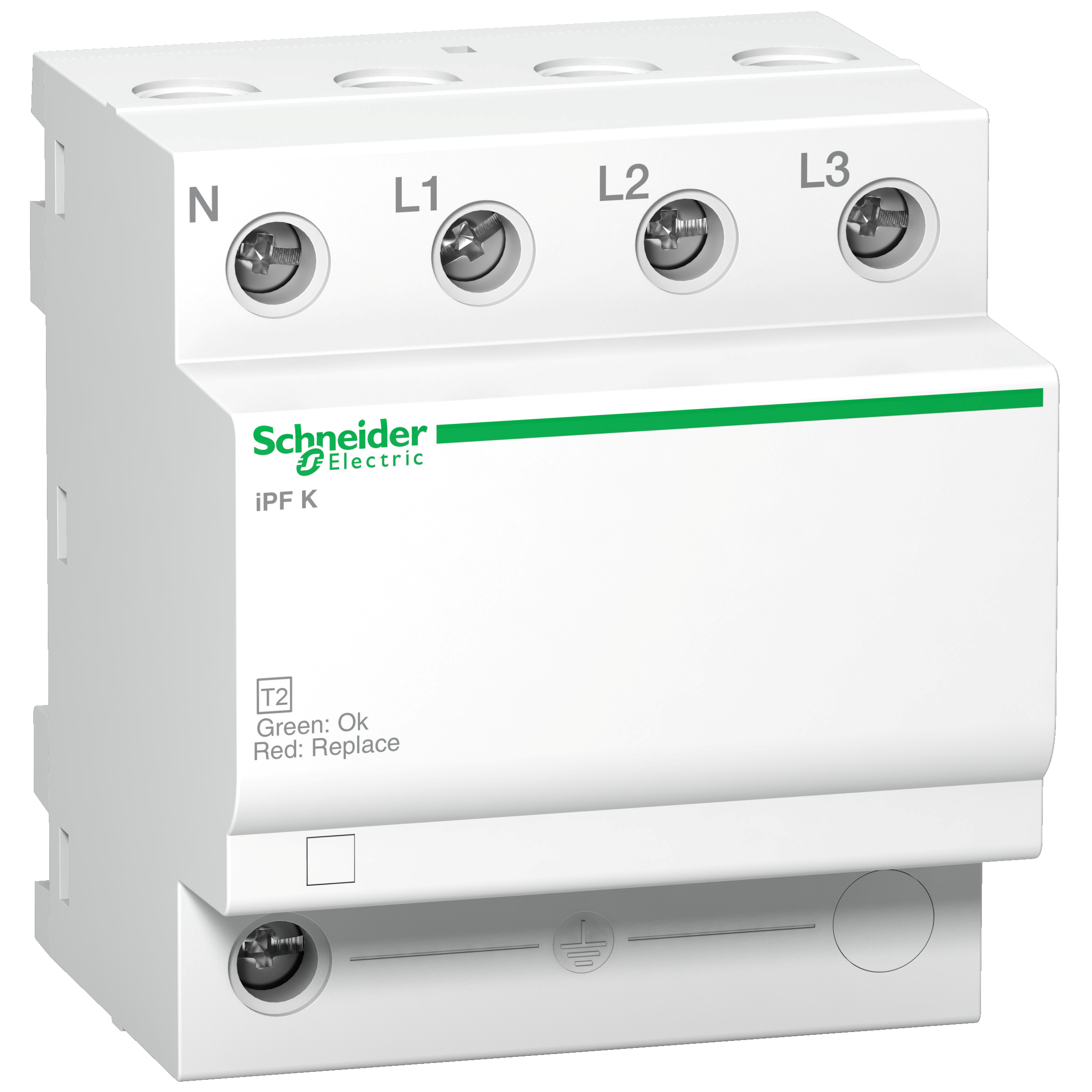

IPF40 SURGE ARRESTER T2 C 3P+N 4M 15/40KA 1.5KV TT, TNS ACTI 9

Name: IPF40 SURGE ARRESTER T2 C 3P+N 4M 15/40KA 1.5KV TT, TNS ACTI 9
Brand: SCHNEIDER ELECTRIC
SKU: 580069
Availability: InStock

92,82 € VAT incl.

VAT incl. (21%)

Part No: A9L15688

Brand: SCHNEIDER ELECTRIC

21 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Additional information

Weight	0,407 kg
Dimensions	70 × 70 × 60 mm
Mounting method	DIN rail (top hat rail) 35 mm
Number of conductors (without earthing)	3
Construction size	4 modular spacing
Voltage protection level	1.5kV
Max. continuous voltage AC	340V
Nominal discharge surge current (8/20)	15kA
Nominal voltage AC	400V
Voltage protection level L-N	1.5kV
Signalling at the device	Optical
Degree of protection (IP)	IP20
Voltage protection level N-PE	1.5kV
Max. conductor cross section solid (solid, stranded)	25mm2
Max. conductor cross section flexible (fine-strand)	16mm2
Max. discharge surge current (8/20)	40kA
Short-circuit breaking capacity (Isccr)	25kA
Max. overcurrent protection device, parallel connection (fuse)	40A
Max. overcurrent protection device, series connection (fuse)	40A
Brand	SCHNEIDER ELECTRIC
SKU	580069
EAN	3606480089879
