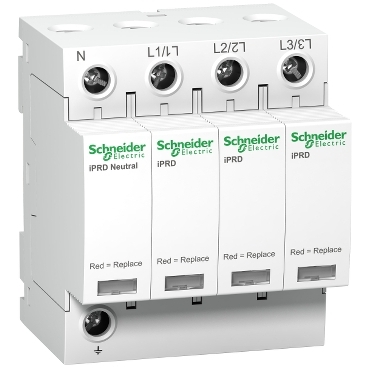

IPRD20 SURGE ARRESTER T2 C 3P+N 4M 5/20KA 1.4KV TT, TNS ACTI 9

Name: IPRD20 SURGE ARRESTER T2 C 3P+N 4M 5/20KA 1.4KV TT, TNS ACTI 9
Brand: SCHNEIDER ELECTRIC
SKU: 568541
Availability: InStock

137,65 € VAT incl.

VAT incl. (21%)

Part No: A9L20600

Brand: SCHNEIDER ELECTRIC

3 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

OGRANICZNIK IPRD-20-20KA-350V-3PN APARATURA MODUŁOWA ACTI 9

Additional information

Weight	0,454 kg
Dimensions	90 × 80 × 75 mm
Mounting method	DIN rail (top hat rail) 35 mm
Number of conductors (without earthing)	3
Construction size	4 modular spacing
Voltage protection level	1.1kV
Max. continuous voltage AC	350V
Nominal discharge surge current (8/20)	5kA
Nominal voltage AC	400V
Voltage protection level L-N	1.1kV
Signalling at the device	Optical
Degree of protection (IP)	IP20
Voltage protection level N-PE	1.4kV
Max. conductor cross section solid (solid, stranded)	35mm2
Max. conductor cross section flexible (fine-strand)	35mm2
Max. discharge surge current (8/20)	20kA
Short-circuit breaking capacity (Isccr)	50kA
Max. overcurrent protection device, parallel connection (fuse)	40A
Max. overcurrent protection device, series connection (fuse)	80A
Brand	SCHNEIDER ELECTRIC
SKU	568541
EAN	3606480506468
