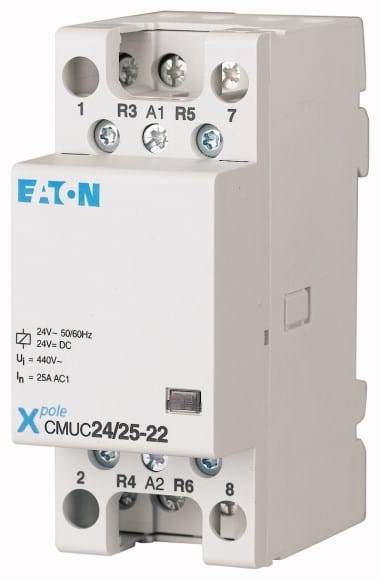

CMUC 25A 4Z MODULAR CONTACTOR 25A 4Z 2M 24V AC/DC
89,84 € VAT incl.
ITL16A PULSE RELAY 16A 2Z 1M 230-240V AC / 110V DC ACTI 9
39,76 € VAT incl.
- VAT excl.
32,86 € VAT excl.
VAT incl. (21%)
Part No:
A9C30812
Brand:
SCHNEIDER ELECTRIC
6 in stock
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Description
PRZEK.IMP. ITL16A 2NO230VAC 110VDC ACTI 9
Additional information
| Weight | 0,11 kg |
|---|---|
| Dimensions | 85 × 70 × 17 mm |
| Mounting method |
DIN rail |
| Function |
Mechanical switch |
| Built-in depth |
43.5mm |
| Width in number of modular spacings |
1 |
| Control voltage 1 |
230V |
| Control voltage 2 |
110V |
| Type of control voltage 1 |
AC |
| Type of control voltage 2 |
DC |
| Frequency control voltage 1 |
50Hz |
| Voltage type (supply voltage) |
AC |
| Supply voltage |
24V |
| Max. switching current (cos phi = 0.6) |
16A |
| Max. incandescent lamp load |
1600W |
| Max. load fluorescent lamp |
1300VA |
| Max. load fluorescent lamp (Duo circuit) |
2000VA |
| Max. load fluorescent lamp (parallel compensated) |
900VA |
| Rated switch current |
16A |
| Number of contacts as normally closed contact |
0 |
| Number of contacts as normally open contact |
2 |
| Number of contacts as change-over contact |
0 |
| Brand | |
| SKU | 524001 |
| EAN | 3606480088995 |
