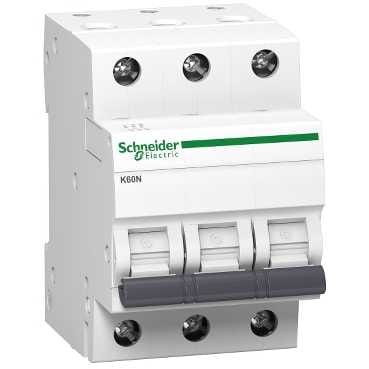

K60N B 40A 3P OVERCURRENT CIRCUIT BREAKER B 40A 3M 6KA ACTI 9

Name: K60N B 40A 3P OVERCURRENT CIRCUIT BREAKER B 40A 3M 6KA ACTI 9
Brand: SCHNEIDER ELECTRIC
SKU: 507520
Availability: InStock

30,17 € VAT incl.

VAT incl. (21%)

Part No: A9K01340

Brand: SCHNEIDER ELECTRIC

10 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

WYŁ. NADPR. K60N 3P 40A B ROZDZIAŁ ENERGII: DO 160A I DO 630A

Additional information

Weight	0,36 kg
Dimensions	85 × 75 × 52 mm
Frequency	50Hz
Voltage type	AC
Built-in depth	44.5mm
Rated current	40A
Rated voltage	400V
Release characteristic	B
Rated insulation voltage Ui	440V
Current limiting class	3
Pollution degree	2
Width in number of modular spacings	3
Degree of protection (IP)	IP20
Number of protected poles	3
Rated short-circuit breaking capacity according to EN 60898	6kA
Rated short-circuit breaking capacity according to IEC 60947-2	0kA
Connectable conductor cross section solid-core	0.5mm2
Connectable conductor cross section multi-wired	0.5mm2
Ambient temperature during operating	-25°C
Number of poles (total)	3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	6kA
Rated impulse withstand voltage Uimp	4kV
Brand	SCHNEIDER ELECTRIC
SKU	507520
EAN	3606480478260
