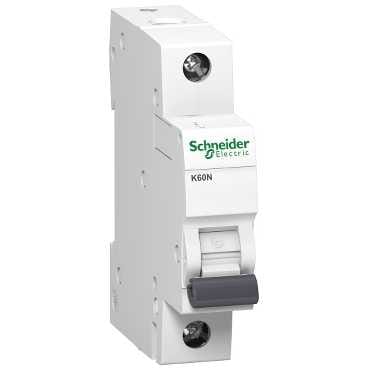

K60N C 16A 1P OVERCURRENT CIRCUIT BREAKER C 16A 1M 6KA ACTI 9

Name: K60N C 16A 1P OVERCURRENT CIRCUIT BREAKER C 16A 1M 6KA ACTI 9
Brand: SCHNEIDER ELECTRIC
SKU: 507522
Availability: InStock

5,99 € VAT incl.

VAT incl. (21%)

Part No: A9K02116

Brand: SCHNEIDER ELECTRIC

528 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Additional information

Weight	0,106 kg
Dimensions	83 × 70 × 12 mm
Frequency	50Hz
Voltage type	AC
Built-in depth	44.5mm
Rated current	16A
Rated voltage	230V
Release characteristic	C
Rated insulation voltage Ui	440V
Current limiting class	3
Pollution degree	2
Width in number of modular spacings	1
Degree of protection (IP)	IP20
Number of protected poles	1
Rated short-circuit breaking capacity according to EN 60898	6kA
Rated short-circuit breaking capacity according to IEC 60947-2	0kA
Connectable conductor cross section solid-core	0.5mm2
Connectable conductor cross section multi-wired	0.5mm2
Ambient temperature during operating	-25°C
Number of poles (total)	1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	6kA
Rated impulse withstand voltage Uimp	4kV
Brand	SCHNEIDER ELECTRIC
SKU	507522
EAN	3606480478321
