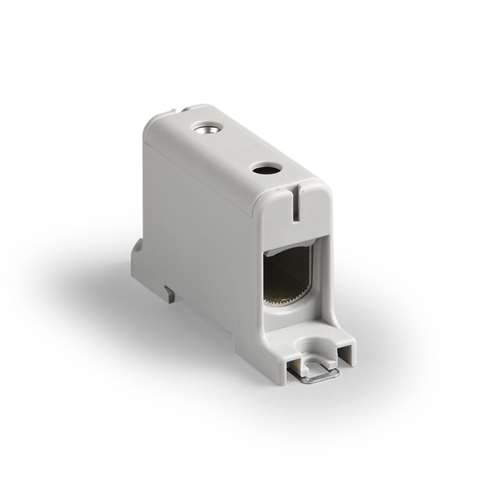

KE 62 ZACISK 1-TOROWY 16 – 95 MM2 – SZARY

Name: KE 62 ZACISK 1-TOROWY 16 - 95 MM2 - SZARY
Brand: ENSTO BUILDING SYSTEMS
SKU: 063498
Availability: InStock

12,40 € VAT incl.

VAT incl. (21%)

Part No: KE62

Brand: ENSTO BUILDING SYSTEMS

11 in stock

Add to wishlist

Compare

Delivery

Delivery time 3-5 working days.

50k products

For your home.

Support

Fast support.

Quality

Top product brands.

Description

1 torowy, szary, Al/Cu 16-95 mm²

Opis Zaciski uniwersalne Ensto Clampo stosowane są do łączenia przewodów Al/Cu o przekrojach 2.5 – 240 mm². Szeroki zakres zastosowań od tradycyjnych rozdzielnic, automatykę kontrolno-pomiarową, po instalacje budownictwa mieszkaniowego.

Additional information

Weight	0,072 kg
Dimensions	90 × 50 × 25 mm
Mounting method	DIN rail (top hat rail) 35 mm
Color	Grey
Rated voltage	800V
Length	86mm
Operating temperature	80°C
Inflammability class of insulation material according to with UL94	V2
Width/grid dimension	24mm
Closing plate required	No
Type of electrical connection 1	Screw connection
Type of electrical connection 2	Screw connection
Number of levels	1
Number of clamp positions per level	2
Internally connected stages	No
Connectable conductor cross section solid-core	96mm2
Connectable conductor cross section fine-strand with cable end sleeve	70mm2
Connectable conductor cross section fine-strand without cable end sleeve	70mm2
Connectable conductor cross section multi-wired	95mm2
Material insulation body	Thermoplastic
Connection position	Sideways
Rated current In	220A
Explosion-tested version 'Ex e'	No
Brand	ENSTO BUILDING SYSTEMS
SKU	063498
EAN	6418677191855
