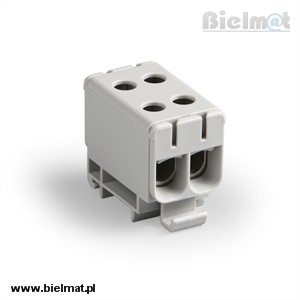

KE 66 EXPANSION CLAMP 2,5 – 50 MM2 – GREY

Name: KE 66 EXPANSION CLAMP 2,5 - 50 MM2 - GREY
Brand: ENSTO BUILDING SYSTEMS
SKU: 056632
Availability: InStock

17,65 € VAT incl.

VAT incl. (21%)

Part No: KE66

Brand: ENSTO BUILDING SYSTEMS

18 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

20685/N ZACISK KE 66 2,5-50MM2 SZARY SZT

Additional information

Weight	0,046 kg
Dimensions	50 × 45 × 30 mm
Mounting method	DIN rail (top hat rail) 35 mm
Color	Grey
Rated voltage	800V
Length	49mm
Operating temperature	80°C
Inflammability class of insulation material according to with UL94	V2
Width/grid dimension	29.8mm
Closing plate required	No
Type of electrical connection 1	Screw connection
Type of electrical connection 2	Screw connection
Number of levels	1
Number of clamp positions per level	4
Internally connected stages	Yes
Connectable conductor cross section solid-core	50mm2
Connectable conductor cross section fine-strand with cable end sleeve	35mm2
Connectable conductor cross section fine-strand without cable end sleeve	35mm2
Connectable conductor cross section multi-wired	50mm2
Material insulation body	Thermoplastic
Connection position	Sideways
Rated current In	160A
Explosion-tested version 'Ex e'	No
Brand	ENSTO BUILDING SYSTEMS
SKU	056632
EAN	6418677191947
