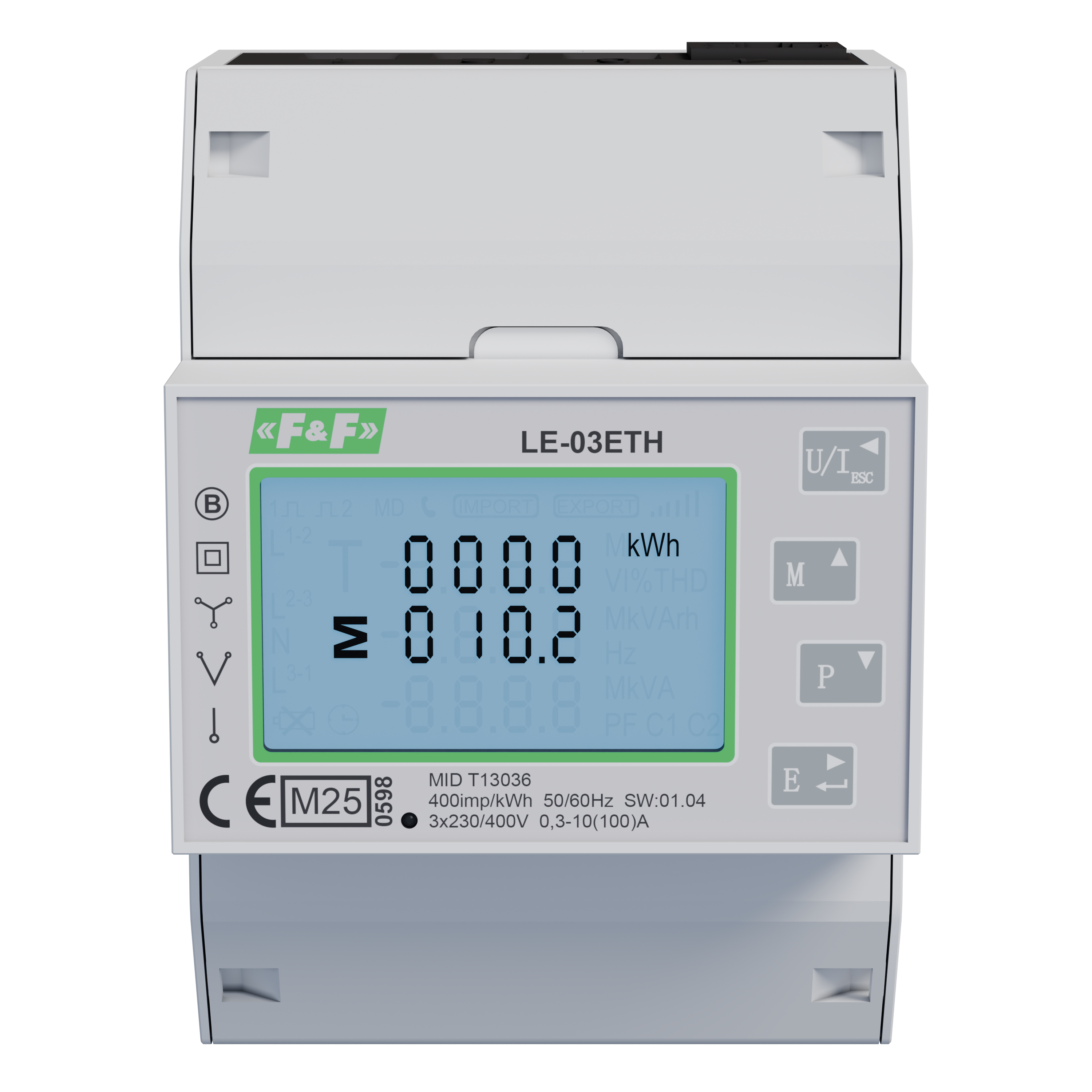

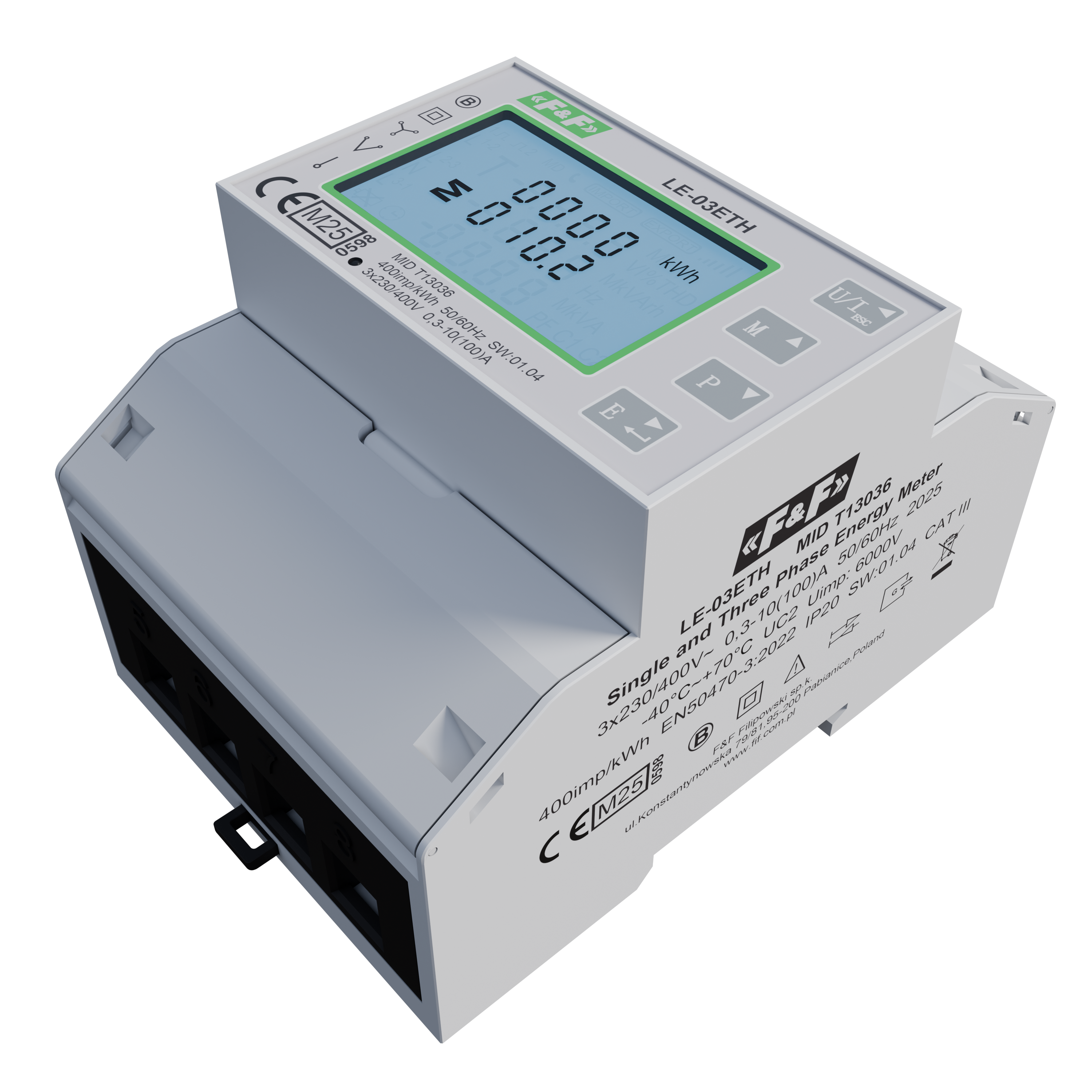

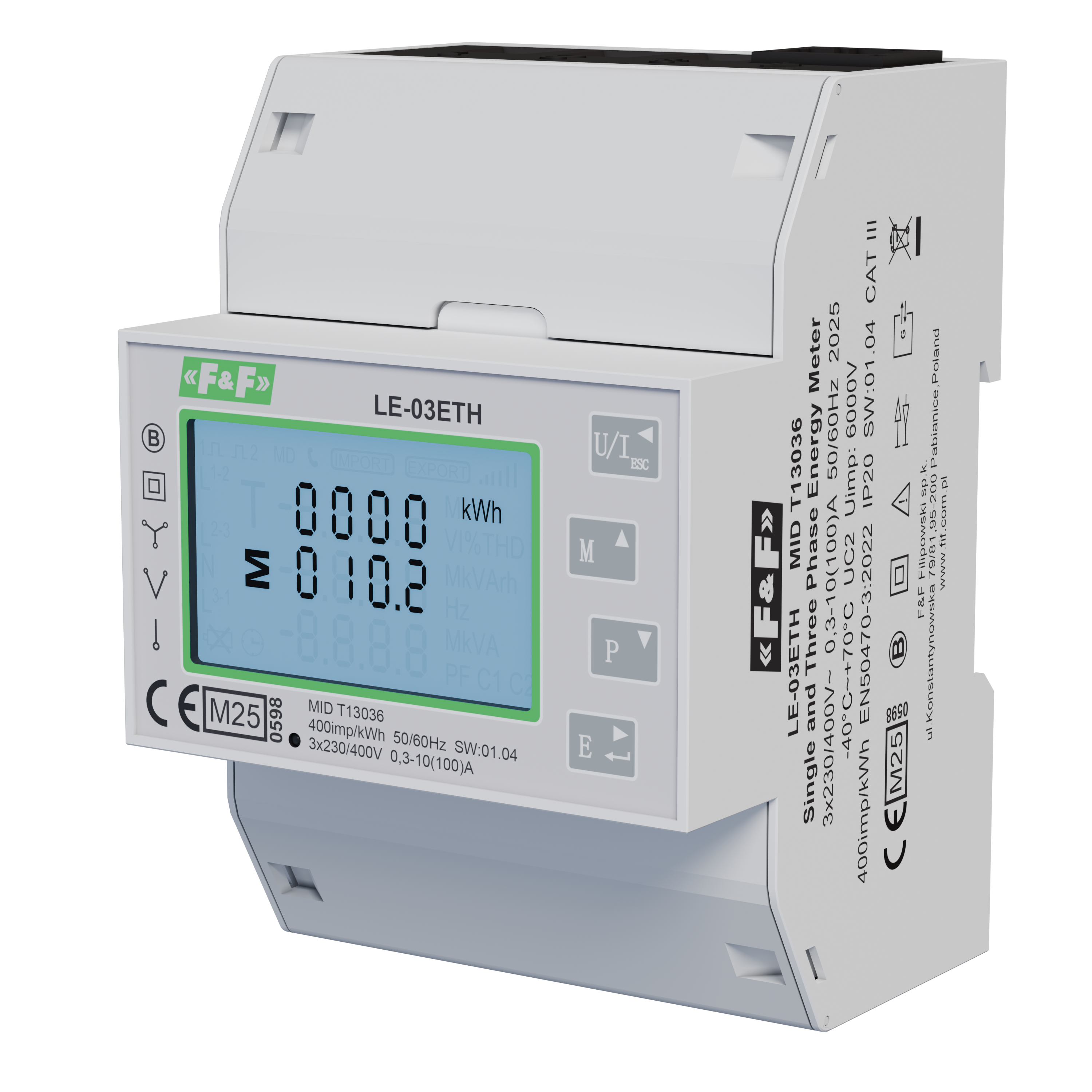

LE-03ETH TRÓJFAZOWY LICZNIK, POMIAR BEZPOŚREDNI 100A, KOMUNIKACJA MODBUS TCP, MID

266,25 € VAT incl.

VAT incl. (21%)

Part No: LE-03ETH

Brand: F&F

3 in stock

Add to wishlist

Compare

Delivery

Delivery time 3-5 working days.

50k products

For your home.

Support

Fast support.

Quality

Top product brands.

Description

Electronic electricity meters are modern devices for precise measurement of electricity consumption. They have functions of remote reading, data recording and communication with management systems. Electronic electricity meters are standard in residential, commercial and industrial buildings. They enable cost control and energy consumption analysis.

Additional information

Weight	0,2 kg
Dimensions	130 × 120 × 80 mm
Mounting method	DRA (DIN-rail adapter)
Model	Direct measurement
Suitable for	Purchase/supply
Type of indication	Digital
Power consumption	2W
Frequency	50Hz
Max. current (Imax)	100A
Width in number of modular spacings	4
Number of counter positions	7
Type of meter	Electronic
Degree of protection (IP)	IP51
Type of interface	Other
Energy type	Effective power and blind power
Tariff type	One-tariff
Escapement mechanism	Yes
Calibrated	Yes
Approval	Measuring Instruments Directive
Pulse output	Electrical
Pulse type	S0
Pulse rate	400Imp/kWh (kvarh)
Accuracy class	B
Pole type	Three conductor/four conductor
Measurement type load profile	No
Rated voltage (Un) N-L	100V
Rated voltage (Un) L-L	173V
Rated current (In)	10A
Brand	F&F
SKU	3154897
EAN	5902431678283
