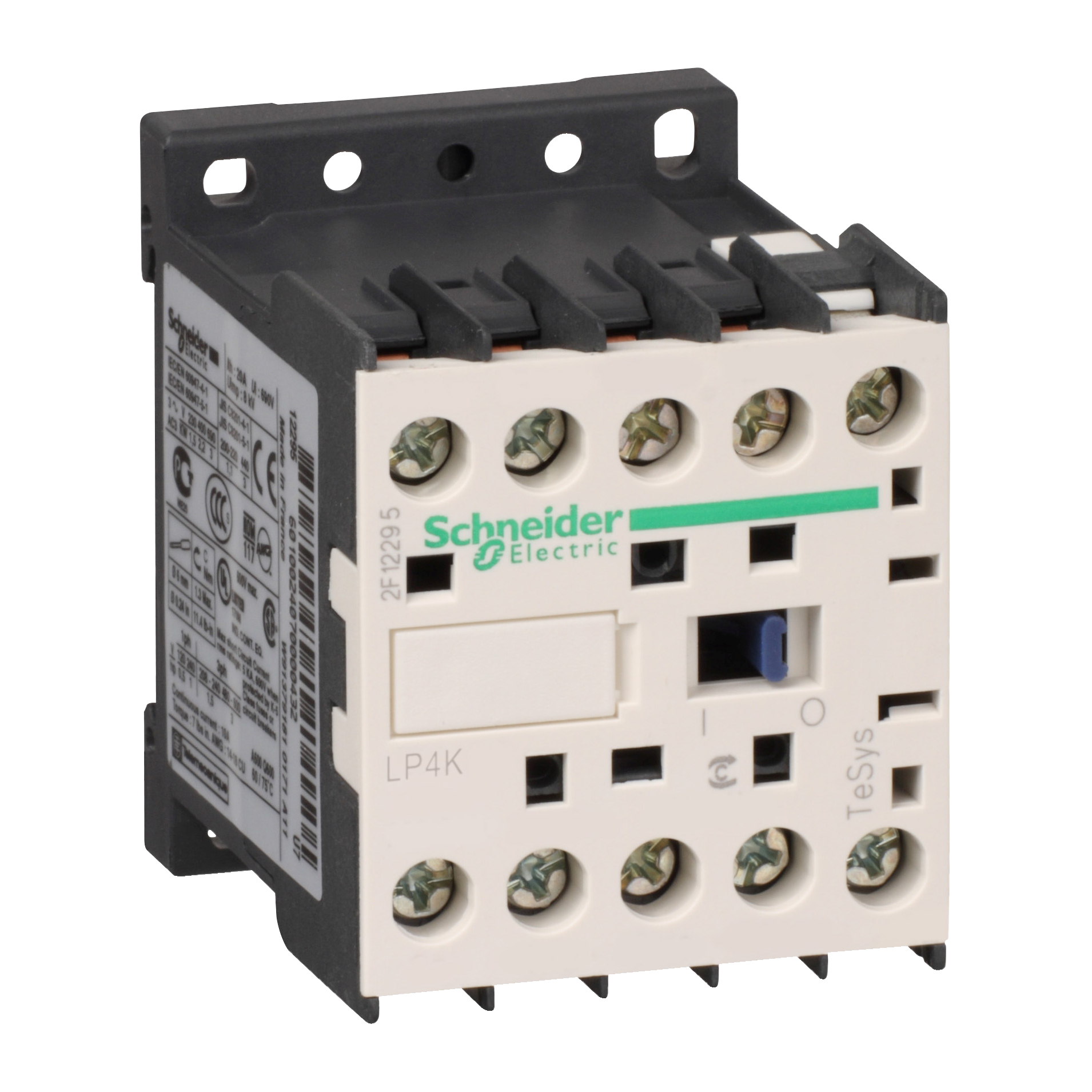

LP4K0601BW3 6A 3Z 1R POWER CONTACTOR 2.2KW 24V DC SCREW TERMINALS

Name: LP4K0601BW3 6A 3Z 1R POWER CONTACTOR 2.2KW 24V DC SCREW TERMINALS
Brand: SCHNEIDER ELECTRIC
SKU: 108534
Availability: InStock

45,23 € VAT incl.

VAT incl. (21%)

Part No: LP4K0601BW3

Brand: SCHNEIDER ELECTRIC

1 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

Stycznik mocy miniaturowy I=6A [AC-3], styk pom. 1NC, nap. cewki 24 V DC. Zakres: TeSys – typ produk

Additional information

Weight	0,221 kg
Dimensions	66 × 62 × 48 mm
Rated operation power at AC-3, 400 V	2.2kW
Number of normally open contacts as main contact	3
Number of normally closed contacts as main contact	0
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	1
Rated operation current Ie at AC-3, 400 V	6A
Rated operation current Ie at AC-1, 400 V	20A
Rated control supply voltage DC	24V
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC
Rated operation current Ie at AC-4, 400 V	4A
Rated operation power at AC-4, 400 V	1.5kW
Brand	SCHNEIDER ELECTRIC
SKU	108534
EAN	3389110428551
