Weight	0,05 kg
Dimensions	33 × 31 × 76 mm
Switching function	Slow-action switch
Rated operation current Ie at AC-15, 230 V	6A
Rated operation current Ie at DC-13, 230 V	0.3A
Housing material	Plastic
Coating housing	Other
Type of interface for safety communication	None
Type of electric connection	Cable entry metrical
Explosion safety category for gas	None
Explosion safety category for dust	None
Construction type housing	Cuboid
Degree of protection (IP)	IP66/IP67
Number of safety auxiliary contacts	2
Type of control element	Plunger
Type of interface	None
Rated operation current Ie at AC-15, 125 V	6A
Rated operation current Ie at AC-15, 24 V	6A
Rated operation current Ie at DC-13, 125 V	0.8A
Rated operation current Ie at DC-13, 24 V	3A
Width sensor	31mm
Diameter sensor	0mm
Height of sensor	61mm
Length of sensor	33.5mm
Ambient temperature during operating	-25°C
Number of contacts as normally closed contact	2
Number of contacts as normally open contact	0
Number of contacts as change-over contact	0
Alignment of the control element	Roller cam straight
Degree of protection (NEMA)	Other
Brand	EATON
SKU	037112
EAN	4015082661076

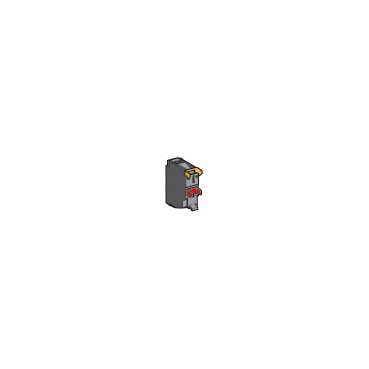

LS-02 266107 LIMIT SWITCH
