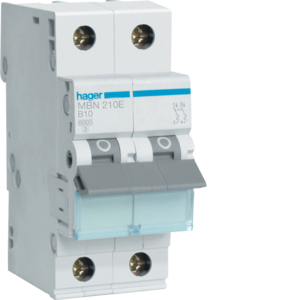

MBN210E B 10A 2P OVERCURRENT CIRCUIT BREAKER B 10A 2M 6KA

Name: MBN210E B 10A 2P OVERCURRENT CIRCUIT BREAKER B 10A 2M 6KA
Brand: HAGER
SKU: 045700
Availability: InStock

23,00 € VAT incl.

VAT incl. (21%)

Part No: MBN210E

Brand: HAGER

5 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

82005/L WYŁ.NADPRĄD.2X10A B MB210A MB210A SZT HAGER POLO

Additional information

Weight	0,186 kg
Dimensions	73 × 35 × 87 mm
Frequency	50Hz
Voltage type	AC
Built-in depth	70mm
Rated current	10A
Rated voltage	400V
Release characteristic	B
Rated insulation voltage Ui	500V
Current limiting class	3
Over voltage category	3
Pollution degree	2
Width in number of modular spacings	2
Power loss	3.8W
Degree of protection (IP)	IP20
Number of protected poles	2
Rated short-circuit breaking capacity according to EN 60898	6kA
Rated short-circuit breaking capacity according to IEC 60947-2	10kA
Connectable conductor cross section solid-core	1mm2
Connectable conductor cross section multi-wired	1mm2
Ambient temperature during operating	-25°C
Number of poles (total)	2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	10kA
Rated impulse withstand voltage Uimp	4kV
Brand	HAGER
SKU	045700
EAN	3250614312892
