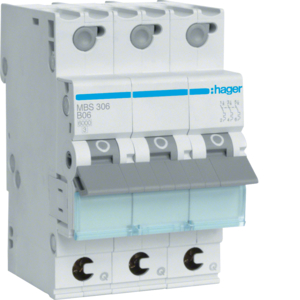

MCB OVERCURRENT CIRCUIT BREAKER ICN=6000A 3P B 6A QUICKCONNECT

Name: MCB OVERCURRENT CIRCUIT BREAKER ICN=6000A 3P B 6A QUICKCONNECT
Brand: HAGER
SKU: 902166
Availability: InStock

18,86 € VAT incl.

VAT incl. (21%)

RRP price: 52,74 €

Part No: MBS306

Brand: HAGER

4 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Additional information

Weight	0,1 kg
Dimensions	80 × 50 × 40 mm
Voltage type	AC
Built-in depth	70mm
Rated current	6A
Rated voltage	400V
Frequency	50Hz
Release characteristic	B
Rated insulation voltage Ui	500V
Current limiting class	3
Over voltage category	3
Pollution degree	2
Width in number of modular spacings	3
Degree of protection (IP)	IP20
Number of protected poles	3
Connectable conductor cross section solid-core	1mm2
Connectable conductor cross section multi-wired	1mm2
Ambient temperature during operating	-25°C
Number of poles (total)	3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	10kA
Rated impulse withstand voltage Uimp	4kV
Brand	HAGER
SKU	902166
EAN	3250614314858
