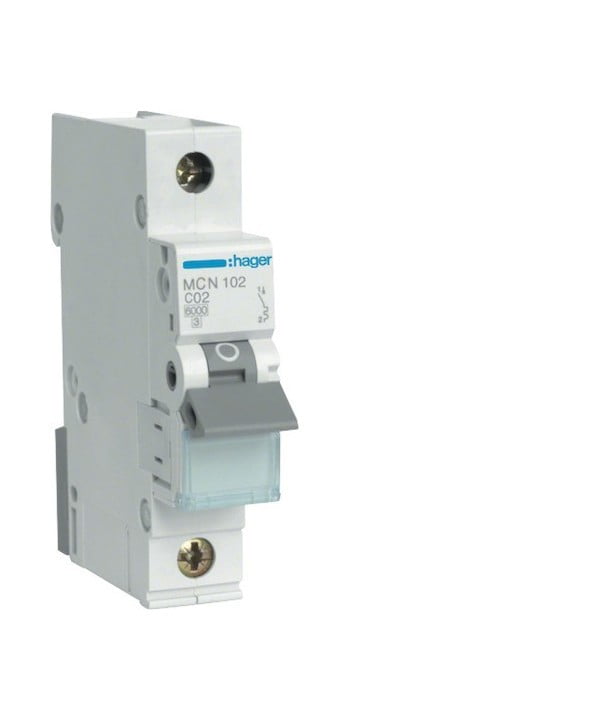

MCN102E C 2A 1P OVERCURRENT CIRCUIT BREAKER C 2A 1M 6KA

Name: MCN102E C 2A 1P OVERCURRENT CIRCUIT BREAKER C 2A 1M 6KA
Brand: HAGER
SKU: 045713
Availability: InStock

15,11 € VAT incl.

VAT incl. (21%)

Part No: MCN102E

Brand: HAGER

33 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

82006/Ą WYŁ.NADPRĄD.1X 2A C MC 102A MC102A SZT HAGER POLO

Additional information

Weight	0,118 kg
Dimensions	90 × 75 × 20 mm
Frequency	50Hz
Voltage type	AC
Built-in depth	70mm
Rated current	2A
Rated voltage	400V
Release characteristic	C
Rated insulation voltage Ui	500V
Current limiting class	3
Over voltage category	3
Pollution degree	2
Width in number of modular spacings	1
Degree of protection (IP)	IP20
Number of protected poles	1
Rated short-circuit breaking capacity according to EN 60898	6kA
Connectable conductor cross section solid-core	1mm2
Connectable conductor cross section multi-wired	1mm2
Ambient temperature during operating	-25°C
Number of poles (total)	1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	10kA
Rated impulse withstand voltage Uimp	4kV
Brand	HAGER
SKU	045713
EAN	3250614333668
