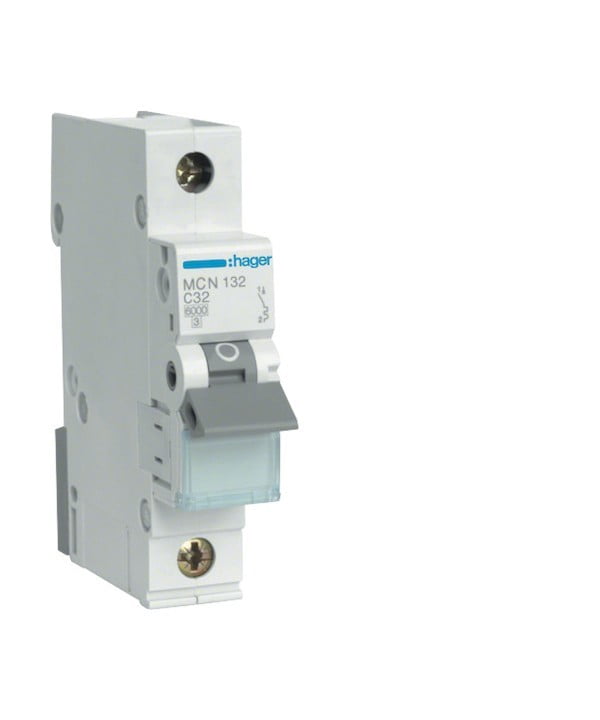

MCN132E C 32A 1P OVERCURRENT CIRCUIT BREAKER C 32A 1M 6KA

Name: MCN132E C 32A 1P OVERCURRENT CIRCUIT BREAKER C 32A 1M 6KA
Brand: HAGER
SKU: 045721
Availability: InStock

10,60 € VAT incl.

VAT incl. (21%)

Part No: MCN132E

Brand: HAGER

34 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

82006/H WYŁ.NADPRĄD.1X32A C MC132A MC132A SZT HAGER POLO

Additional information

Weight	0,116 kg
Dimensions	85 × 75 × 17 mm
Frequency	50Hz
Voltage type	AC
Built-in depth	70mm
Rated current	32A
Rated voltage	400V
Release characteristic	C
Rated insulation voltage Ui	500V
Current limiting class	3
Over voltage category	3
Pollution degree	2
Width in number of modular spacings	1
Degree of protection (IP)	IP20
Number of protected poles	1
Rated short-circuit breaking capacity according to EN 60898	6kA
Connectable conductor cross section solid-core	1mm2
Connectable conductor cross section multi-wired	1mm2
Ambient temperature during operating	-25°C
Number of poles (total)	1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	10kA
Rated impulse withstand voltage Uimp	4kV
Brand	HAGER
SKU	045721
EAN	3250614313691
