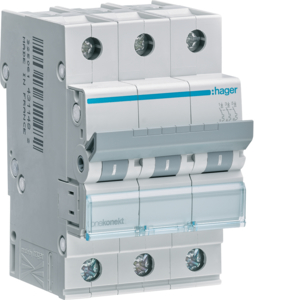

MCN304E C 4A 3P OVERCURRENT CIRCUIT BREAKER C 4A 3M 6KA

Name: MCN304E C 4A 3P OVERCURRENT CIRCUIT BREAKER C 4A 3M 6KA
Brand: HAGER
SKU: 532898
Availability: InStock

50,23 € VAT incl.

VAT incl. (21%)

Part No: MCN304E

Brand: HAGER

1 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

MCN304E MCB WYŁĄCZNIK NADPRĄDOWY 6KA 3P C 4A

Additional information

Weight	0,348 kg
Dimensions	73 × 52,5 × 85 mm
Frequency	50Hz
Voltage type	AC
Built-in depth	70mm
Rated current	4A
Rated voltage	400V
Release characteristic	C
Rated insulation voltage Ui	500V
Current limiting class	3
Over voltage category	3
Pollution degree	2
Width in number of modular spacings	3
Power loss	5.7W
Degree of protection (IP)	IP20
Connectable conductor cross section solid-core	1mm2
Connectable conductor cross section multi-wired	1mm2
Ambient temperature during operating	-25°C
Number of poles (total)	3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	10kA
Rated impulse withstand voltage Uimp	4kV
Brand	HAGER
SKU	532898
EAN	3250614333781
