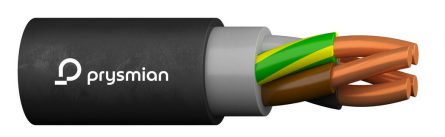

N2XH-J 4X 1.5 ŻO RE BLACK HALOGEN-FREE CABLE 0.6/1KV WIRE B2CA CL.1 DRUM

Name: N2XH-J 4X 1.5 ŻO RE BLACK HALOGEN-FREE CABLE 0.6/1KV WIRE B2CA CL.1 DRUM
Brand: PRYSMIAN
SKU: 3126322
Availability: InStock

1679,55 € VAT incl.

VAT incl. (21%)

Part No: 20477880

Brand: PRYSMIAN

Delivery time 3-5 working days.

For your home.

Fast support.

Additional information

Weight	166 kg
Dimensions	600 × 600 × 400 mm
Nominal cross section conductor	1.5mm2
Core identification	Colour
Weight	150kg/km
Drain wire	Yes
Nominal voltage U	1000V
Shape of conductor	Round
Conductor material	Copper
Material outer sheath	Other
Conductor category	Class 1 = solid
Armouring/reinforcement	None
Core colour	Black
Nominal voltage U0	600V
Screen	No
Number of cores	4
Protective barrier	None
Outer diameter approx.	9.9mm
Low temperature resistant according to EN 60811-504+505+506	No
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	B2ca
Reaction-to-fire according to EN 13501-6: Smoke production	s1
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	d1
Reaction-to-fire according to EN 13501-6: Acidity	a1
AWG size	Other
Min. permitted bending radius, stationary application/permanent installation	118.8mm
Specification core insulation	Crosslinked polyethylene (XLPE)
Specification material outer sheath	Other
Twisted cores	No
Cable geometry	Round
Suitable as installation cable	No
Certified for shipboard application	No
Certified as airport lighting cable	No
Brand	PRYSMIAN
SKU	3126322
EAN	3126322
