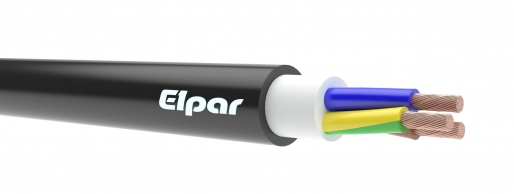

N2XH-J 5X 25.0 ŻO RM BLACK HALOGEN-FREE CABLE 0.6/1KV WIRE B2CA CL.2 DRUM

Name: N2XH-J 5X 25.0 ŻO RM BLACK HALOGEN-FREE CABLE 0.6/1KV WIRE B2CA CL.2 DRUM
Brand: ELPAR
SKU: 888923
Availability: InStock

34991,25 € VAT incl.

VAT incl. (21%)

Part No: N2XH-J-5X25-RM-1KV (B2CA)

Brand: ELPAR

Delivery time 3-5 working days.

For your home.

Fast support.

Additional information

Nominal cross section conductor	25mm2
Core identification	Colour
Weight	1686kg/km
Drain wire	No
Nominal voltage U	1000V
Shape of conductor	Round
Conductor material	Copper
Material outer sheath	Other
Conductor category	Class 2 = stranded
Armouring/reinforcement	None
Core colour	Black
Nominal voltage U0	600V
Screen	No
Number of cores	5
Protective barrier	None
Outer diameter approx.	26.1mm
Low temperature resistant according to EN 60811-504+505+506	No
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	B2ca
Reaction-to-fire according to EN 13501-6: Smoke production	s1b
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	d1
Reaction-to-fire according to EN 13501-6: Acidity	a1
AWG size	Other
Min. permitted bending radius, stationary application/permanent installation	313.2mm
Specification core insulation	Crosslinked polyethylene (XLPE)
Specification material outer sheath	Other
Twisted cores	No
Cable geometry	Round
Suitable as installation cable	No
Certified for shipboard application	No
Certified as airport lighting cable	No
Brand	ELPAR
SKU	888923
EAN	5901854434896
