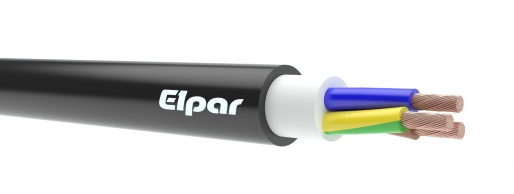

N2XH-J 5X 4.0 ŻO RE BLACK CABLE HALOGEN-FREE WIRE 0.6/1KV B2CA CL.1 DRUM

Name: N2XH-J 5X 4.0 ŻO RE BLACK CABLE HALOGEN-FREE WIRE 0.6/1KV B2CA CL.1 DRUM
Brand: ELPAR
SKU: 869479
Availability: InStock

3944,48 € VAT incl.

VAT incl. (21%)

Part No: N2XH-J-5X4-RE-1KV (B2CA)

Brand: ELPAR

Delivery time 3-5 working days.

For your home.

Fast support.

Additional information

Weight	350 kg
Dimensions	900 × 900 × 560 mm
Nominal cross section conductor	4mm2
Material core insulation	Other
Core identification	Colour
Circuit integrity	None
Nominal voltage U	1000V
Colour outer sheath	Black
Shape of conductor	Round
Diameter conductor	13.1mm
Conductor material	Copper
Material outer sheath	Polyolefin
Conductor category	Class 1 = solid
Armouring/reinforcement	None
Permitted cable outer temperature during assembling/handling	-5°C
Core colour	Several
Nominal voltage U0	600V
Number of cores	5
Max. conductor temperature	90°C
Protective barrier	None
Outer diameter approx.	13.1mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Dca
Reaction-to-fire according to EN 13501-6: Smoke production	s2
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	d0
Reaction-to-fire according to EN 13501-6: Acidity	a1
Min. permitted bending radius, stationary application/permanent installation	157.2mm
Specification core insulation	Crosslinked polyethylene (XLPE)
Specification material outer sheath	Other
Cable geometry	Round
Brand	ELPAR
SKU	869479
EAN	5901854419794
