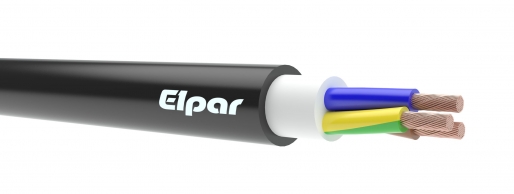

N2XH-O 1X 50.0 RM BLACK HALOGEN-FREE CABLE WIRE 0.6/1KV B2CA CL.2

Name: N2XH-O 1X 50.0 RM BLACK HALOGEN-FREE CABLE WIRE 0.6/1KV B2CA CL.2
Brand: ELPAR
SKU: 3026448
Availability: InStock

7720,02 € VAT incl.

VAT incl. (21%)

RRP price: 9991,24 €

Part No: N2XH-O-1X50-RM-1KV (B2CA)

Brand: ELPAR

Delivery time 3-5 working days.

For your home.

Fast support.

Additional information

Weight	579 kg
Dimensions	800 × 800 × 400 mm
Nominal cross section conductor	50mm2
Material core insulation	Other
Core identification	Colour
Circuit integrity	None
Nominal voltage U	1000V
Colour outer sheath	Black
Shape of conductor	Round
Diameter conductor	12.9mm
Conductor material	Copper
Material outer sheath	Polyolefin
Conductor category	Class 2 = stranded
Armouring/reinforcement	None
Permitted cable outer temperature during assembling/handling	-5°C
Core colour	Several
Nominal voltage U0	600V
Number of cores	1
Max. conductor temperature	90°C
Protective barrier	None
Outer diameter approx.	12.9mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	B2ca
Reaction-to-fire according to EN 13501-6: Smoke production	s1b
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	d0
Reaction-to-fire according to EN 13501-6: Acidity	a1
Min. permitted bending radius, stationary application/permanent installation	193.5mm
Specification core insulation	Crosslinked polyethylene (XLPE)
Specification material outer sheath	Other
Cable geometry	Round
Brand	ELPAR
SKU	3026448
EAN	5901854435053
