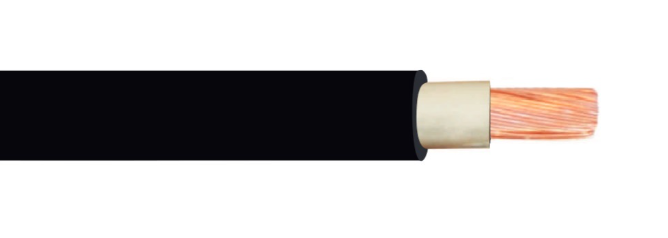

N2XH-O 1X 50 RMC CZARNY KABEL BEZHALOGENOWY DRUT 0.6/1KV KL.2 ZAGĘSZCZANY B2CA

Name: N2XH-O 1X 50 RMC CZARNY KABEL BEZHALOGENOWY DRUT 0.6/1KV KL.2 ZAGĘSZCZANY B2CA
Brand: ELTRIM
SKU: 987100
Availability: InStock

11469,41 € VAT incl.

VAT incl. (21%)

Part No: WCHVE01M00CEA0O

Brand: ELTRIM

Delivery time 3-5 working days.

For your home.

Fast support.

Additional information

Nominal cross section conductor	50mm2
Core insulation material	Other
Core identification	Colour
Weight	596kg/km
Drain wire	No
Nominal voltage U	1000V
Color of coating/insulation	Black
Shape of conductor	Round
Conductor material	Copper
Material outer sheath	Other
Conductor category	Class 2 = stranded
Permissible ambient temperature of the cable during installation	-5°C
Permissible ambient temperature of the cable after installation (without vibration)	-40°C
Core colour	Black
Nominal voltage U0	600V
Screen	No
Number of cores	1
Halogen-free according to IEC 60754-2	Yes
Low smoke emissions in accordance with IEC 61034-2	No
Maximum allowable core temperature	90°C
Outer diameter approx.	15.2mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	B2ca
Reaction-to-fire according to EN 13501-6: Smoke production	s1
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	d0
Reaction-to-fire according to EN 13501-6: Acidity	a1
Min. permitted bending radius, stationary application/permanent installation	228mm
Specification core insulation	Crosslinked polyethylene (XLPE)
Specification material outer sheath	Other
Cable geometry	Round
Cable packaging	Drum
Commercial designation	N2XH-O
Fire resistance according to IEC 60332-1-2	Yes
Fire resistance according to IEC 60332-3-23 (cat. B)	No
Fire resistance according to IEC 60332-3-24 (cat. C)	Yes
Brand	ELTRIM
SKU	987100
EAN	987100
