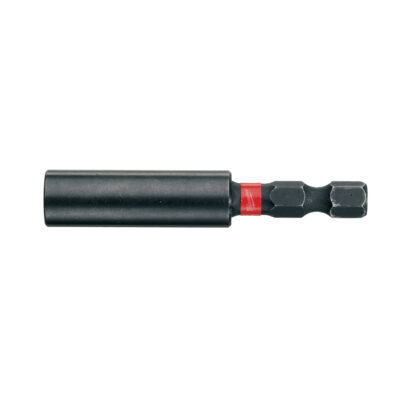

SHOCKWAVE MAGNETIC HEX 1/4 60 MM BIT HOLDER
7,28 € VAT incl.
REINFORCED ASSEMBLY BELT FOR POCKETS AND HOLSTERS, PROLINE
23,34 € VAT incl.

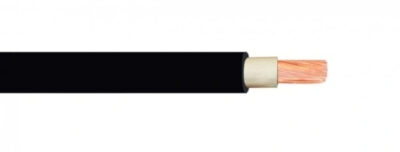

N2XH-O 1X120.0 RM BLACK HALOGEN-FREE CABLE WIRE 0.6/1KV CL.2 FLAMEBLOCKER
26628,12 € VAT incl.
- VAT excl.
22006,71 € VAT excl.
VAT incl. (21%)
Part No:
G-116562
Brand:
TELE-FONIKA KABLE
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Request the product
Additional information
| Weight | 1179 kg |
|---|---|
| Dimensions | 1400 × 1400 × 710 mm |
| Nominal cross section conductor |
120mm2 |
| Material core insulation |
Polyolefin |
| Core identification |
Colour |
| Weight |
1234.95kg/km |
| Flame retardant |
According to IEC/EN 60332-3-24 |
| Nominal voltage U |
1kV |
| Colour outer sheath |
Black |
| Shape of conductor |
Round |
| Conductor material |
Copper |
| Material outer sheath |
Polyolefin |
| Conductor category |
Class 2 = stranded |
| Permitted cable outer temperature during assembling/handling |
-5°C |
| Permitted cable outer temperature after assembling without vibration |
-40°C |
| Number of pilot/reduced conductors |
0 |
| Nominal voltage U0 |
0.6kV |
| Number of cores |
1 |
| Nominal cross section concentric conductor |
0mm2 |
| Concentric conductor |
None |
| Max. conductor temperature |
90°C |
| Outer diameter approx. |
18.4mm |
| Halogen free according to EN 60754-1/2 |
Yes |
| Conductor surface |
Bare |
| Reaction-to-fire according to EN 13501-6: Class |
B2ca |
| Reaction-to-fire according to EN 13501-6: Smoke production |
s1a |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles |
d1 |
| Reaction-to-fire according to EN 13501-6: Acidity |
a1 |
| Min. permitted bending radius, stationary application/permanent installation |
276mm |
| Specification core insulation |
Polyethylene (PE) |
| Specification material outer sheath |
Polyethylene (PE) |
| Cable geometry |
Round |
| Conductor resistance at 20 °C |
0.153Ω/km |
| Brand | |
| SKU | 854836 |
| EAN | 5900000024448 |
Related products
NHXH-J FE180/E90 3X 2.5 ŻO RE ORANGE CABLE FIRE RESISTANT WIRE 0.6/1KV CL.1
In stock
3054,46 € VAT incl.
Part No:
0699 015 33
Brand:
TECHNOKABEL

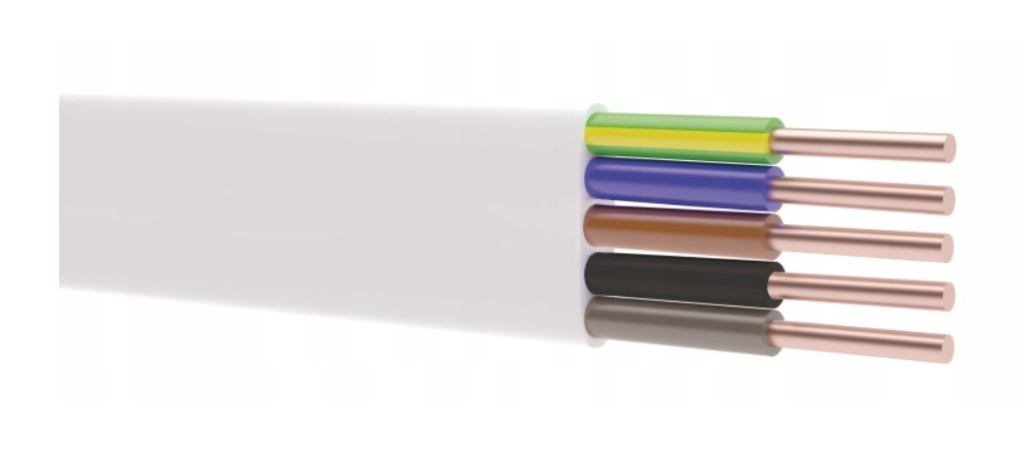

N2XH-JP 5X 2.5 ŻO RE WHITE HALOGEN-FREE 0.6/1KV FLAT INSTALLATION CABLE B2CA CL.1 DRUM
