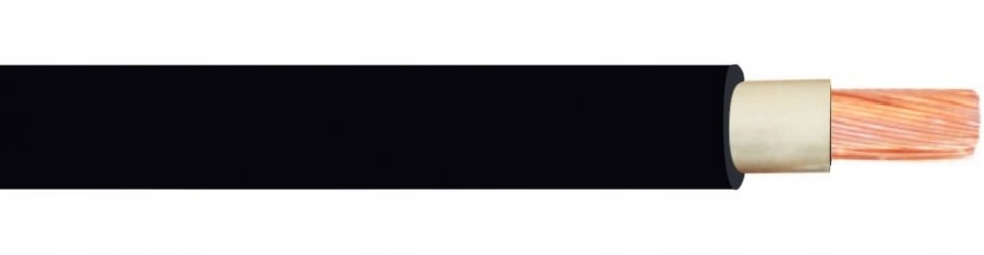

N2XH-O 1X150.0 RM BLACK HALOGEN-FREE CABLE WIRE 0.6/1KV CL.2 FLAMEBLOCKER

Name: N2XH-O 1X150.0 RM BLACK HALOGEN-FREE CABLE WIRE 0.6/1KV CL.2 FLAMEBLOCKER
Brand: TELE-FONIKA
SKU: 815496
Availability: InStock

32486,59 € VAT incl.

VAT incl. (21%)

Part No: G-108894

Brand: TELE-FONIKA

Delivery time 3-5 working days.

For your home.

Fast support.

Additional information

Nominal cross section conductor	150mm2
Core identification	Colour
Weight	1513kg/km
Lead sheath	No
Drain wire	No
Nominal voltage U	1000V
Shape of conductor	Round
Conductor material	Copper
Material outer sheath	Other
Conductor category	Class 2 = stranded
Number of pilot/reduced conductors	0
Core colour	Black
Nominal voltage U0	600V
Screen	No
Number of cores	1
Outer diameter approx.	20.2mm
With protective conductor	No
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	B2ca
Reaction-to-fire according to EN 13501-6: Smoke production	s1a
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	d1
Reaction-to-fire according to EN 13501-6: Acidity	a1
Min. permitted bending radius, stationary application/permanent installation	242.4mm
Specification core insulation	Crosslinked polyethylene (XLPE)
Specification material outer sheath	Other
Cable geometry	Round
Conductor resistance at 20 °C	0.124Ω/km
Core identification according to HD 308 S2	Yes
Suitable as installation cable	Yes
Certified for shipboard application	No
Certified as airport lighting cable	No
Brand	TELE-FONIKA
SKU	815496
EAN	815496
