Nominal cross section conductor	240mm2
Material core insulation	Polyvinyl chloride (PVC)
Core identification	Colour
Weight	4993kg/km
Flame retardant	No
Circuit integrity	No
Nominal voltage U	1kV
Colour outer sheath	Black
Shape of conductor	Sector-shaped
Conductor material	Aluminium
Material outer sheath	Polyolefin
Conductor category	Class 1 = solid
Permitted cable outer temperature during assembling/handling	-5°C
Permitted cable outer temperature after assembling without vibration	-35°C
Number of pilot/reduced conductors	0
Nominal voltage U0	0.6kV
Number of cores	4
Concentric conductor	None
Max. conductor temperature	70°C
Outer diameter approx.	57.8mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Fca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	694mm
Specification core insulation	Other
Specification material outer sheath	Polyethylene (PE)
Cable geometry	Round
Brand	NKT
SKU	3041497
EAN	8591462150522

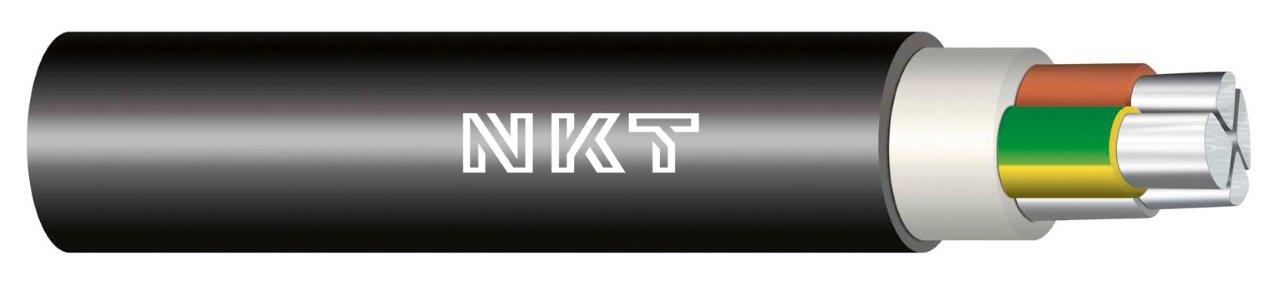

NAY2Y-J 4X240 SE POWER CABLES WITH ALUMINUM CONDUCTOR AND PVC INSULATION TO. ENEA SPECIFICATIONS
