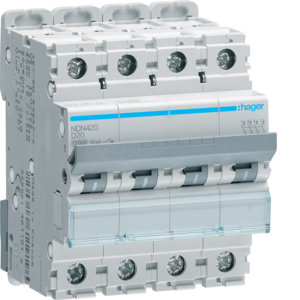

NDN420 WYŁĄCZNIK NADPRĄDOWY D 20A 4P 4M 10KA

Name: NDN420 WYŁĄCZNIK NADPRĄDOWY D 20A 4P 4M 10KA
Brand: HAGER
SKU: 914323
Availability: InStock

108,28 € VAT incl.

VAT incl. (21%)

Part No: NDN420

Brand: HAGER

1 in stock

Add to wishlist

Compare

Delivery

Delivery time 3-5 working days.

50k products

For your home.

Support

Fast support.

Quality

Top product brands.

Description

Overcurrent breakers protect electrical installations against overloads and short circuits. They operate by automatically interrupting the circuit when the permissible current is exceeded. They are an essential element of every switchgear. They are used in residential, commercial and industrial buildings.

Additional information

Weight	0,462 kg
Dimensions	90 × 90 × 80 mm
Voltage type	AC
Built-in depth	70mm
Rated current	20A
Rated voltage	400V
Frequency	50Hz
Release characteristic	D
Rated insulation voltage Ui	500V
Over voltage category	3
Pollution degree	2
Width in number of modular spacings	4
Explosion-proof	No
Power loss	10.87W
Degree of protection (IP)	IP20
Number of poles protected	4
Concurrently switching neutral conductor	No
Connectable conductor cross section solid-core	1mm2
Connectable conductor cross section multi-wired	1mm2
Ambient temperature during operating	-25°C
Flush-mounted installation	Yes
Additional equipment possible	Yes
Number of poles (total)	4
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	30kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	15kA
Rated impulse withstand voltage Uimp	6kV
Brand	HAGER
SKU	914323
EAN	3250614611926
