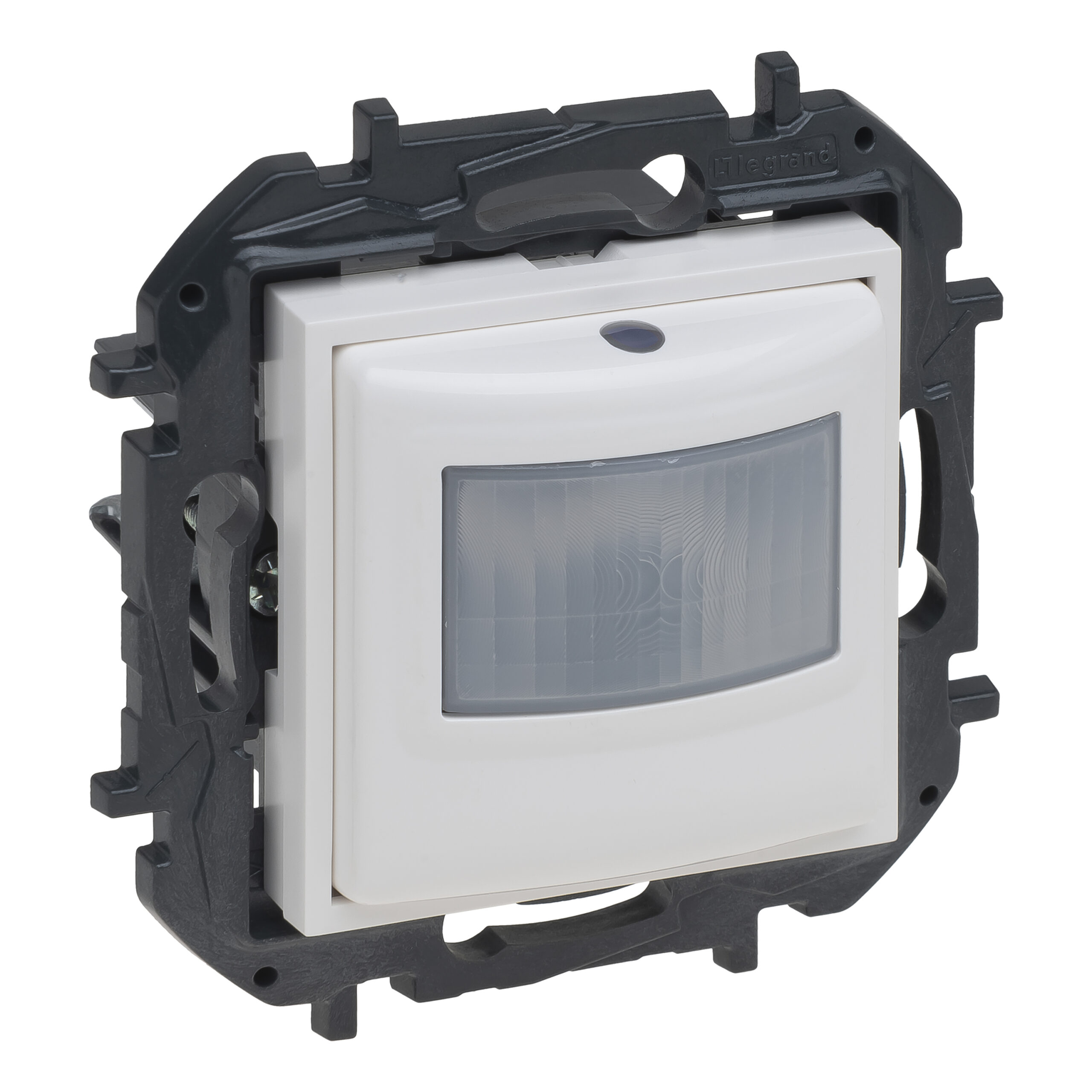

NILOE STEP – ŁĄCZNIK AUTOMATYCZNY, 3 PRZEWODOWY, Z N – KOLOR BIAŁY

Name: NILOE STEP - ŁĄCZNIK AUTOMATYCZNY, 3 PRZEWODOWY, Z N - KOLOR BIAŁY
Brand: LEGRAND
SKU: 3137723
Availability: InStock

79,94 € VAT incl.

VAT incl. (21%)

Part No: 863149B

Brand: LEGRAND

1 in stock

Add to wishlist

Compare

Delivery

Delivery time 3-5 working days.

50k products

For your home.

Support

Fast support.

Quality

Top product brands.

Description

Sensors are the basic elements of the system that respond to changes in the environment, such as movement, temperature, humidity or the presence of light. They send data to the control unit, enabling automatic system responses. They increase the safety and comfort of using the building. They are an indispensable element of every intelligent installation.

Additional information

Weight	0,25 kg
Dimensions	50 × 70 × 120 mm
Mounting method	Flush-mounted
Color	White
Model	Movement sensor
Connection type	Screwed terminal
Surface protection	Lacquered
Voltage type	AC
Switching-on delay	0s
Switch-off delay	0s
Built-in depth	24mm
Frequency	50Hz
Material grade	Thermoplastic
Max. reach frontally	8m
Max. reach sideways	6m
Max. switching power	2000W
pa_material	Plastic
Ambient temperature	5°C
Connection cable length	0mm
Response value luminosity	5lx
Scan angle	170°
Impact strength	IK04
Nominal voltage	110V
Degree of protection (IP)	IP20
Surface finishing	Glossy
Detection angle horizontal	85°
Min. switch-on time	5s
Max. duty cycle	30min
Optimum mounting height	1.2m
Pivoting range sensor, horizontal	0°
Pivoting range sensor, vertical	0°
Number of switching zones	1
Min. depth of built-in installation box	30mm
Max. presence range	32m2
Max. switching power LED	500W
Technology of motion/presence sensor	Passive infrared
Brand	LEGRAND
SKU	3137723
EAN	3414972930062
