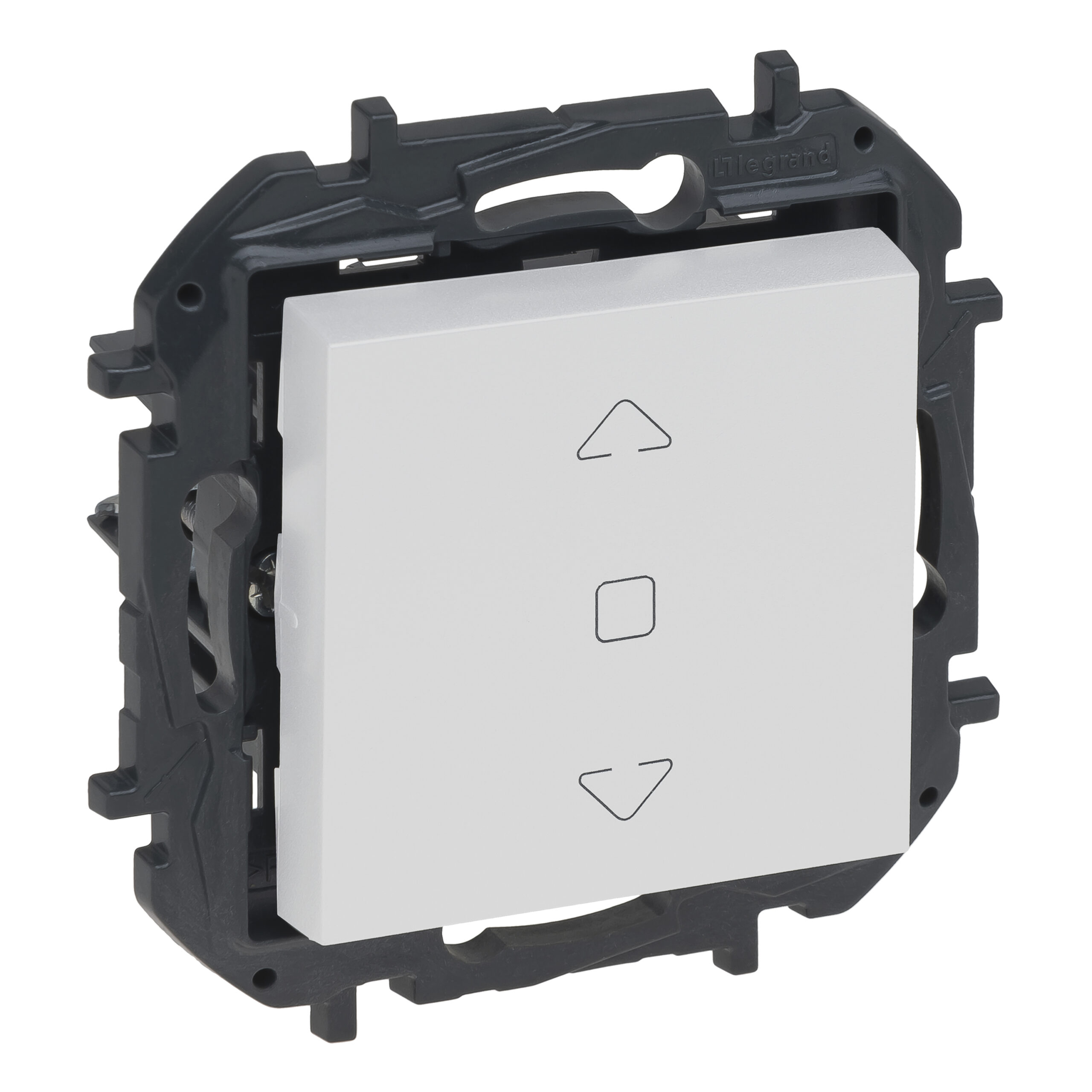

NILOE STEP – ROLLER SHUTTER CONTROL BUTTON 2 – POSITION – WHITE COLOR

Name: NILOE STEP - ROLLER SHUTTER CONTROL BUTTON 2 - POSITION - WHITE COLOR
Brand: LEGRAND
SKU: 3117661
Availability: InStock

11,60 € VAT incl.

VAT incl. (21%)

Part No: 863143B

Brand: LEGRAND

6 in stock

Add to wishlist

Compare

Delivery

Delivery time 3-5 working days.

50k products

For your home.

Support

Fast support.

Quality

Top product brands.

Description

Blind buttons are specialized switches used to control blinds, roller blinds, awnings and other window coverings. Their design and functionality allow you to control the movement up, down or stop the cover at any time. Here are some key information about blind buttons:

Additional information

Weight	0,06 kg
Dimensions	40,2 × 75,8 × 75,8 mm
Nominal voltage	250V
Mounting method	Flush-mounted
Assembly arrangement	Other
Method of operation	Rocker
Color	White
Model	Other
Halogen free	Yes
Connection type	Screwed terminal
Surface protection	Untreated
Built-in depth	30mm
Rated current	6A
Built-in diameter	58mm
Material grade	Thermoplastic
Number of poles	1
pa_material	Plastic
Type of fastening	Mounting with claw and screw
For roller blinds	Yes
Number of buttons	1
RAL-number (similar)	9003
Mechanical controllable	No
Transparent	No
Surface finishing	Matt
Electronic controllable	No
Suitable for degree (IP)	IP20
Device width	75.8mm
Device height	75.8mm
Device depth	40.2mm
Number of modules (module system)	1
Min. depth of built-in installation box	31mm
Brand	LEGRAND
SKU	3117661
EAN	3414972872232
