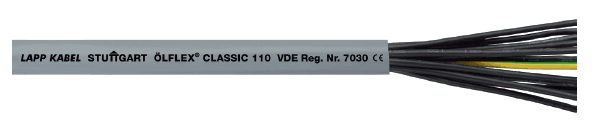

OLFLEX CLASSIC 110 12G 1.0 ŻO GREY CONTROL LINE 300/500V DRUM CL.5 OIL NUMBERED

Name: OLFLEX CLASSIC 110 12G 1.0 ŻO GREY CONTROL LINE 300/500V DRUM CL.5 OIL NUMBERED
Brand: LAPPKABEL
SKU: 512180
Availability: InStock

4,25 € VAT incl.

VAT incl. (21%)

Part No: 1119212

Brand: LAPPKABEL

758 in stock

Add to wishlist

Compare

Delivery

Delivery time 3-5 working days.

50k products

For your home.

Support

Fast support.

Quality

Top product brands.

Additional information

Weight	0,205 kg
Dimensions	1000 × 14 × 14 mm
Function	PLC – other devices
Nominal cross section conductor	1mm2
Material core insulation	Polyvinyl chloride (PVC)
Core identification	Numbers
Flame retardant	According to IEC/EN 60332-1-2
Number of poles	15
Nominal voltage U	500V
Stranding element	No
Colour outer sheath	Grey
Conductor material	Copper
Screen over stranding element	None
Screen over stranding	None
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 5 = flexible
Permitted cable outer temperature during assembling/handling	-15°C
Permitted cable outer temperature after assembling without vibration	-40°C
Number of cores	12
Outer diameter approx.	10.5mm
Type of electrical connection, box-sided	Other
Type of electrical connection, field-sided	Other
Suitable for input board PLC	Yes
Suitable for output card PLC	Yes
Suitable for digital signals	Yes
Suitable for analogue signals	No
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Min. permitted bending radius, moving application/free movement	105mm
Min. permitted bending radius, stationary application/permanent installation	42mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Brand	LAPPKABEL
SKU	512180
EAN	4044773066432
