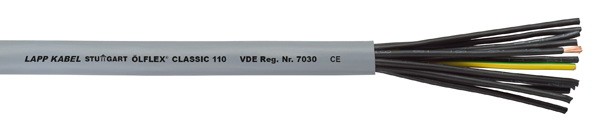

OLFLEX CLASSIC 110 3G 0.75 ŻO GREY LINE CORD 300/500V DRUM CL.5 OIL NUMBERED

Name: OLFLEX CLASSIC 110 3G 0.75 ŻO GREY LINE CORD 300/500V DRUM CL.5 OIL NUMBERED
Brand: LAPPKABEL
SKU: 087712
Availability: InStock

0,75 € VAT incl.

VAT incl. (21%)

Part No: 1119103

Brand: LAPPKABEL

1495 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Additional information

Weight	0,056 kg
Dimensions	1000 × 5,7 × 5,7 mm
Nominal cross section conductor	0.75mm2
Material core insulation	Polyvinyl chloride (PVC)
Core identification	Numbers
Flame retardant	According to IEC/EN 60332-1-2
Nominal voltage U	500V
Stranding element	No
Colour outer sheath	Grey
Conductor material	Copper
Screen over stranding element	None
Screen over stranding	None
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 5 = flexible
Permitted cable outer temperature during assembling/handling	-15°C
Permitted cable outer temperature after assembling without vibration	-40°C
Number of cores	3
Outer diameter approx.	5.7mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Min. permitted bending radius, moving application with forced guidance	85.5mm
Min. permitted bending radius, moving application/free movement	57mm
Min. permitted bending radius, stationary application/permanent installation	22.8mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Brand	LAPPKABEL
SKU	087712
EAN	4044773067996
