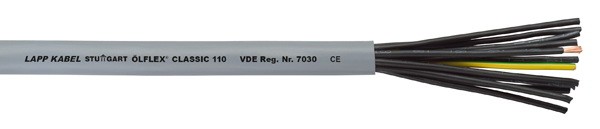

OLFLEX CLASSIC 110 4G 0.75 ŻO GREY LINE CORD 300/500V DRUM CL.5 OIL NUMBERED

Name: OLFLEX CLASSIC 110 4G 0.75 ŻO GREY LINE CORD 300/500V DRUM CL.5 OIL NUMBERED
Brand: LAPPKABEL
SKU: 064190
Availability: InStock

0,98 € VAT incl.

VAT incl. (21%)

Part No: 1119104

Brand: LAPPKABEL

969 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Additional information

Weight	0,066 kg
Dimensions	1000 × 6 × 6 mm
Nominal cross section conductor	0.75mm2
Material core insulation	Polyvinyl chloride (PVC)
Core identification	Numbers
Flame retardant	According to IEC/EN 60332-1-2
Nominal voltage U	500V
Stranding element	No
Colour outer sheath	Grey
Conductor material	Copper
Screen over stranding element	None
Screen over stranding	None
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 5 = flexible
Permitted cable outer temperature during assembling/handling	-15°C
Permitted cable outer temperature after assembling without vibration	-40°C
Number of cores	4
Outer diameter approx.	6.2mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Min. permitted bending radius, moving application with forced guidance	93mm
Min. permitted bending radius, moving application/free movement	62mm
Min. permitted bending radius, stationary application/permanent installation	24.8mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Brand	LAPPKABEL
SKU	064190
EAN	4044773067989
