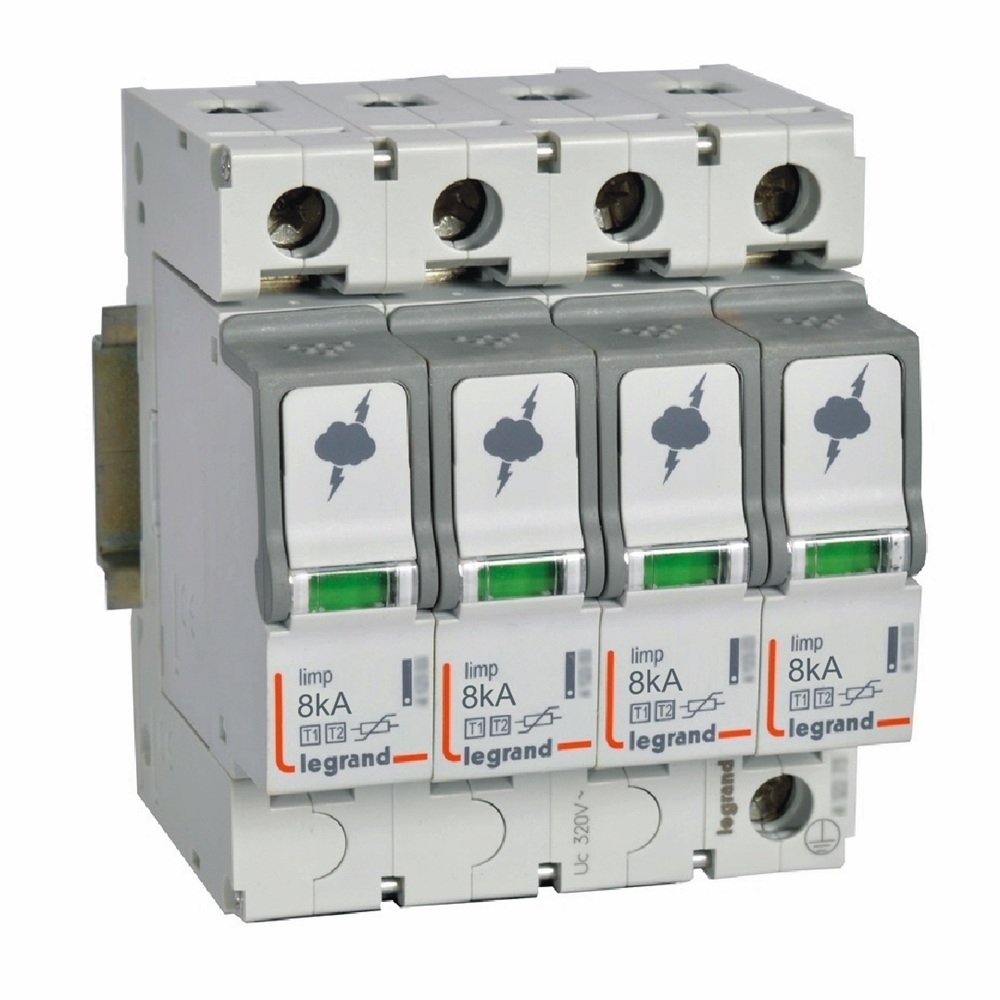

ON300 T1+T2 B+C surge protector 4P 4M 8/50KA TT, TNC, TNS (ex 603953)
258,50 € VAT incl.
- VAT excl.
213,64 € VAT excl.
VAT incl. (21%)
Part No:
412253
Brand:
LEGRAND
8 in stock
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Additional information
| Weight | 0,58 kg |
|---|---|
| Dimensions | 100 × 90 × 80 mm |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| Number of conductors (without earthing) |
4 |
| Construction size |
4 modular spacing |
| Voltage protection level |
1.7kV |
| Max. continuous voltage AC |
320V |
| Nominal discharge surge current (8/20) |
20kA |
| Nominal voltage AC |
400V |
| Signalling at the device |
Optical |
| Degree of protection (IP) |
IP20 |
| Max. conductor cross section solid (solid, stranded) |
35mm2 |
| Max. conductor cross section flexible (fine-strand) |
25mm2 |
| Brand | |
| SKU | 043504 |
| EAN | 3414970518248 |
