Weight	0,254 kg
Voltage type	AC/DC
Housing material	Plastic
Coating housing	Other
Switching frequency	300Hz
Switching distance	20mm
Number of semiconductor outputs with signalling function	2
Number of contact energized outputs with signalling function	0
Number of protected semiconductor outputs	2
Number of protected contact energized outputs	0
Type of interface for safety communication	None
Type of electric connection	Screw connection
Type of switching output	NPN/NPN
Type of switch function	Other
Rated control supply voltage DC	12V
Explosion safety category for gas	None
Explosion safety category for dust	None
Construction type housing	Cuboid
Max. output current at protected output	200mA
Mechanical mounting condition for sensor	Concise
Supply voltage	12V
Type of actuation	Metallic Target
Type of interface	None
Width sensor	117mm
Height of sensor	40mm
Length of sensor	40mm
Performance level according to EN ISO 13849-1	None
Interference resistance to magnetic fields	Immune against magnetic DC-field
SIL according to IEC 61508	None
SKU	913947
EAN	3389119058278

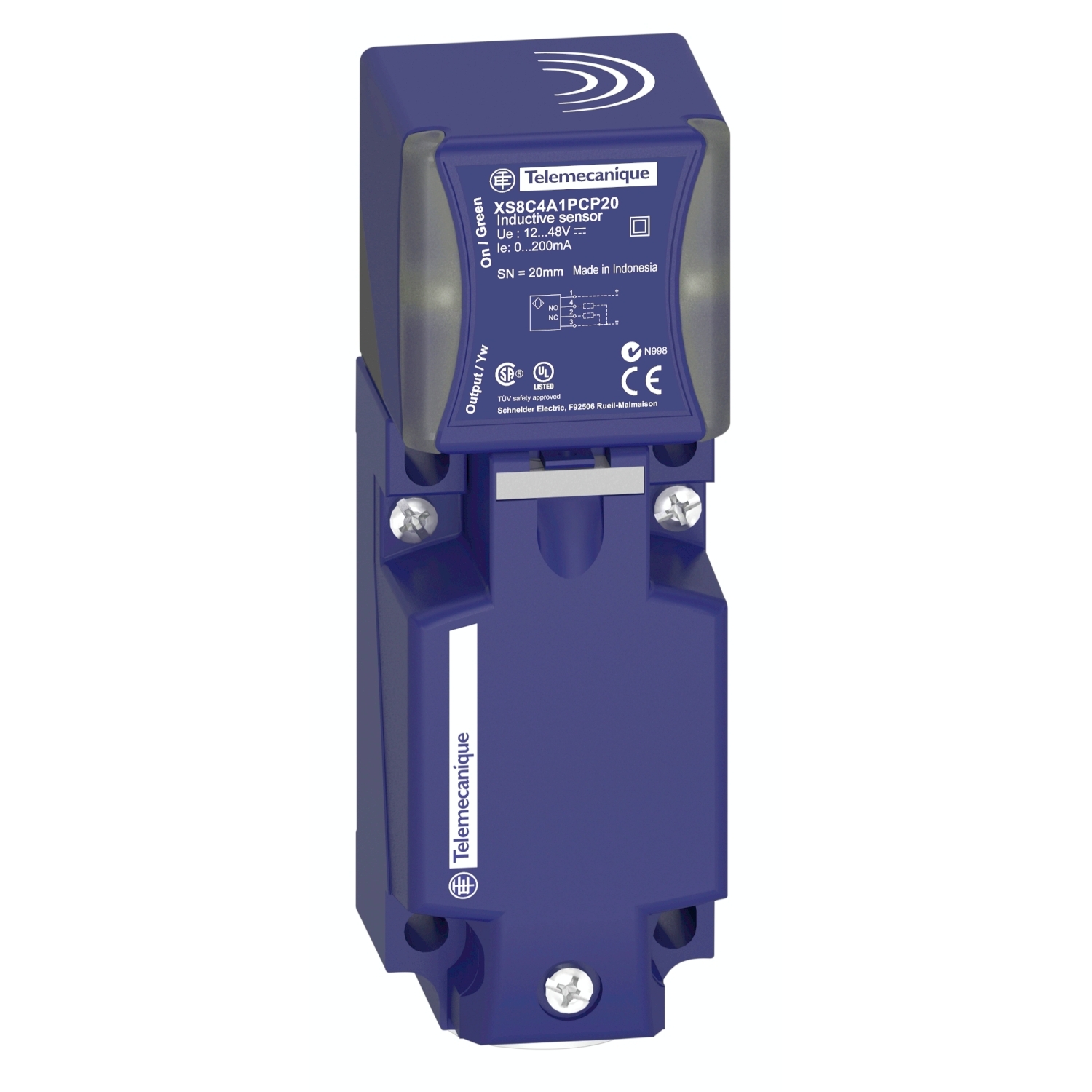

OSISENSE XS INDUCTIVE SENSOR XS8 40X40X117 PBT SN20 MM 12..48VDC TERMINALS
