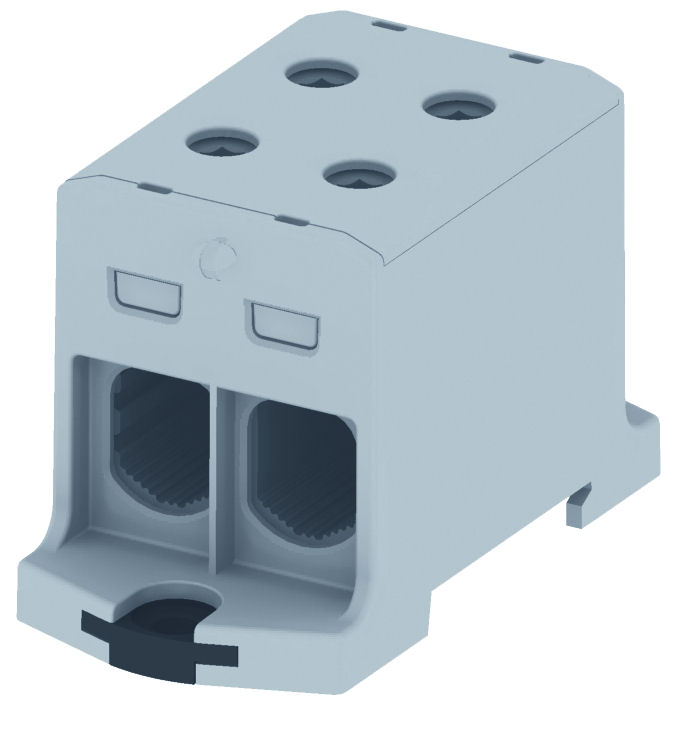

OTL150-2 GREY 2XAL/CU 25-150MM2 1000V UNIVERSAL TERMINAL

Name: OTL150-2 GREY 2XAL/CU 25-150MM2 1000V UNIVERSAL TERMINAL
Brand: MOREK
SKU: 146557
Availability: InStock

23,55 € VAT incl.

VAT incl. (21%)

RRP price: 35,62 €

Part No: MAA2150A10

Brand: MOREK

26 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

Złączka szynowa gwintowa rozgałęźna AL, CU, 25-150mm2, TS 35, 1 tor, 4 otw. zaciskowe_szary_VC05-0031

Additional information

Weight	0,17 kg
Dimensions	84 × 51 × 54 mm
Mounting method	DIN rail (top hat rail) 35 mm
Color	Grey
Rated voltage	1000V
Length	84mm
Inflammability class of insulation material according to with UL94	V0
Width/grid dimension	31mm
Type of electrical connection 1	Screw connection
Number of levels	1
Number of clamp positions per level	4
Connectable conductor cross section fine-strand with cable end sleeve	25mm2
Connectable conductor cross section fine-strand without cable end sleeve	25mm2
Connectable conductor cross section multi-wired	25mm2
Material insulation body	Thermoplastic
Connection position	Sideways
Rated current In	640A
Brand	MOREK
SKU	146557
EAN	4744397014191
