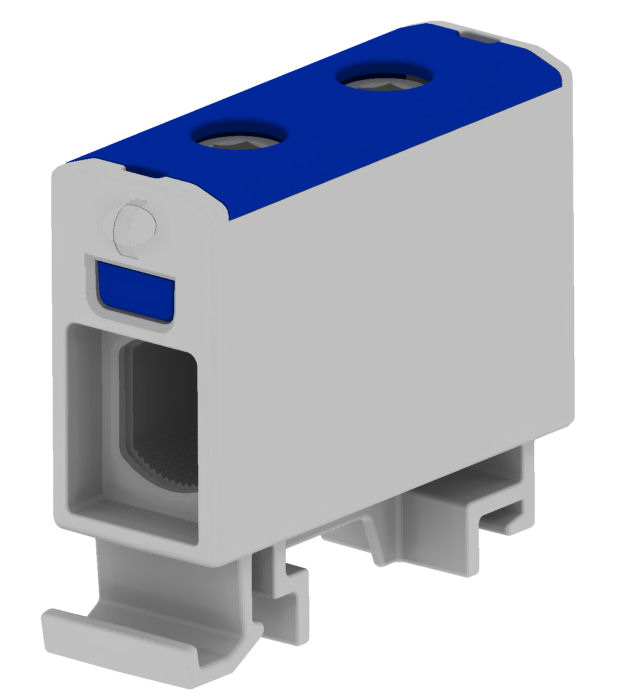

OTL16 BLUE 1XAL/CU 1,5-16MM2 1000V UNIVERSAL TERMINAL

Name: OTL16 BLUE 1XAL/CU 1,5-16MM2 1000V UNIVERSAL TERMINAL
Brand: MOREK
SKU: 151711
Availability: InStock

3,41 € VAT incl.

VAT incl. (21%)

RRP price: 5,59 €

Part No: MAA1016B10

Brand: MOREK

273 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

Złączka szynowa gwintowa AL, CU, 1,5 – 16 mm2, TS 35, 1 tor, 2 otw. zaciskowe_niebieski_VC05-0001

Additional information

Weight	0,016 kg
Dimensions	44 × 39 × 18 mm
Mounting method	DIN rail (top hat rail) 35 mm
Color	Blue
Rated voltage	1000V
Length	45mm
Inflammability class of insulation material according to with UL94	V0
Width/grid dimension	13.5mm
Type of electrical connection 1	Screw connection
Number of levels	1
Number of clamp positions per level	2
Connectable conductor cross section fine-strand with cable end sleeve	1.5mm2
Connectable conductor cross section fine-strand without cable end sleeve	1.5mm2
Connectable conductor cross section multi-wired	1.5mm2
Material insulation body	Thermoplastic
Connection position	Sideways
Rated current In	82A
Brand	MOREK
SKU	151711
EAN	4744397013743
