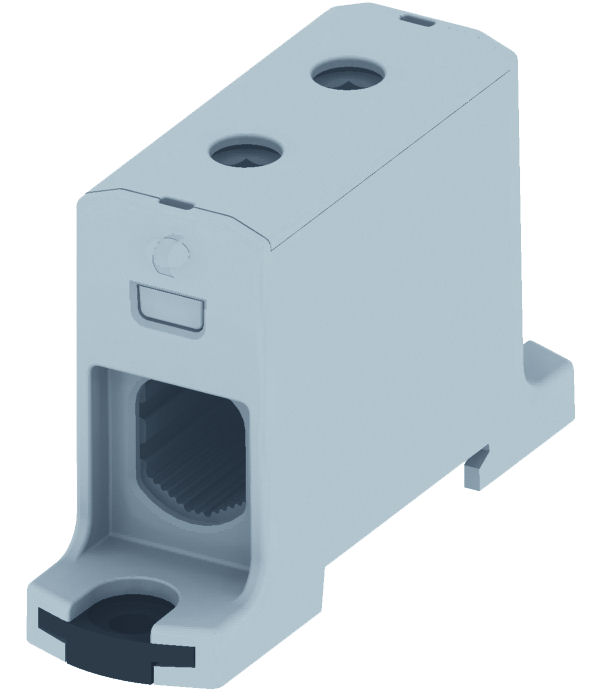

OTL240 GREY 1XAL/CU 35-240MM2 1000V UNIVERSAL TERMINAL
23,80 € VAT incl.
- VAT excl.
19,67 € VAT excl.
VAT incl. (21%)
Part No:
MAA1240A10
Brand:
MOREK
19 in stock
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Description
Złączka szynowa gwintowa AL, CU, 35 – 240mm2, TS 35, 1 tor, 2 otw. zaciskowe_szary_VC05-0034
Additional information
| Weight | 0,195 kg |
|---|---|
| Dimensions | 106 × 37 × 65 mm |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| Color |
Grey |
| Rated voltage |
1000V |
| Length |
106mm |
| Inflammability class of insulation material according to with UL94 |
V0 |
| Width/grid dimension |
37mm |
| Type of electrical connection 1 |
Screw connection |
| Number of levels |
1 |
| Number of clamp positions per level |
2 |
| Connectable conductor cross section fine-strand with cable end sleeve |
35mm2 |
| Connectable conductor cross section fine-strand without cable end sleeve |
35mm2 |
| Connectable conductor cross section multi-wired |
35mm2 |
| Material insulation body |
Thermoplastic |
| Connection position |
Sideways |
| Rated current In |
425A |
| Brand | |
| SKU | 066104 |
| EAN | 4744397013972 |
