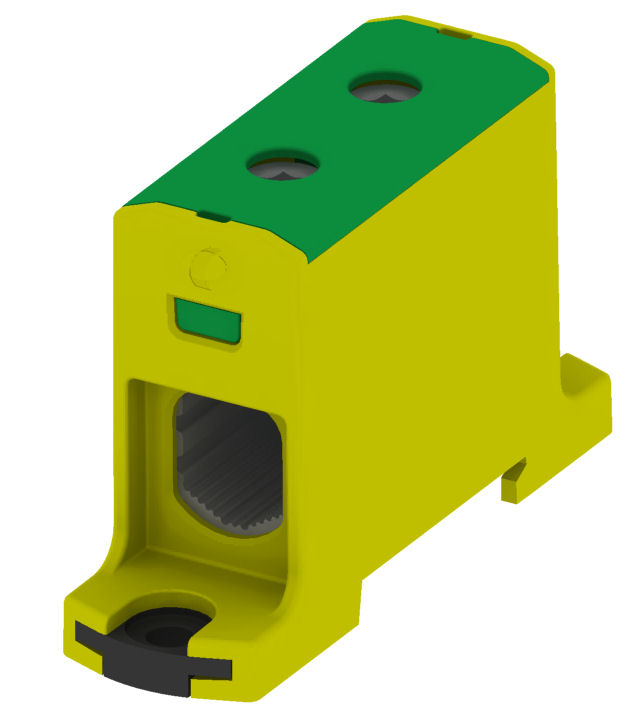

OTL240 YELLOW-GREEN 1XAL/CU 35-240MM2 1000V UNIVERSAL TERMINAL

Name: OTL240 YELLOW-GREEN 1XAL/CU 35-240MM2 1000V UNIVERSAL TERMINAL
Brand: MOREK
SKU: 066102
Availability: InStock

19,54 € VAT incl.

VAT incl. (21%)

RRP price: 33,20 €

Part No: MAA1240Y10

Brand: MOREK

2 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

Złączka szynowa gwintowa AL, CU, 35 – 240mm2, TS 35, 1 tor, 2 otw. zaciskowe_żółto-zielony_VC05-0036

Additional information

Weight	0,195 kg
Dimensions	106 × 37 × 65 mm
Mounting method	DIN rail (top hat rail) 35 mm
Color	Green/yellow
Rated voltage	1000V
Length	106mm
Inflammability class of insulation material according to with UL94	V0
Width/grid dimension	37mm
Type of electrical connection 1	Screw connection
Number of levels	1
Number of clamp positions per level	2
Connectable conductor cross section fine-strand with cable end sleeve	35mm2
Connectable conductor cross section fine-strand without cable end sleeve	35mm2
Connectable conductor cross section multi-wired	35mm2
Material insulation body	Thermoplastic
Connection position	Sideways
Rated current In	425A
Brand	MOREK
SKU	066102
EAN	4744397013996
