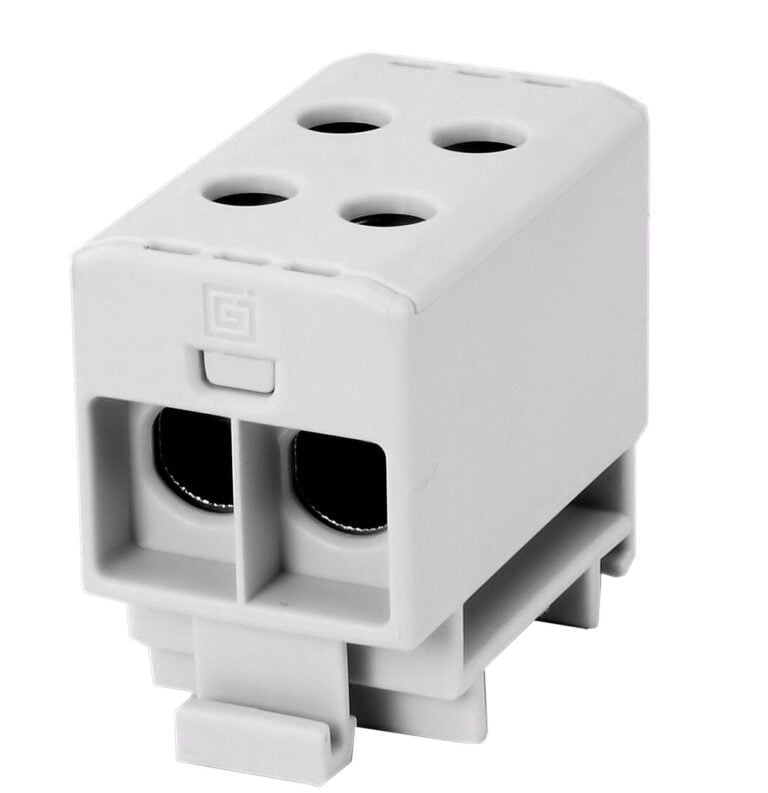

OTL35-2 GREY 2XAL/CU 2,5-35MM2 1000V UNIVERSAL TERMINAL

Name: OTL35-2 GREY 2XAL/CU 2,5-35MM2 1000V UNIVERSAL TERMINAL
Brand: MOREK
SKU: 591164
Availability: InStock

8,97 € VAT incl.

VAT incl. (21%)

Part No: MAA2035A10

Brand: MOREK

291 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

VC05-0153 ZŁĄCZKA SZYNOWA GWINTOWA ROZGAŁĘŹNA AL/CU/ 25-35MM2/ TS 35/ 1 TOR 4 OTW ZACISKOWE SZARY

Additional information

Weight	0,044 kg
Dimensions	46 × 27 × 40 mm
Mounting method	DIN rail (top hat rail) 35 mm
Color	Grey
Rated voltage	1000V
Length	46mm
Inflammability class of insulation material according to with UL94	V0
Width/grid dimension	27mm
Type of electrical connection 1	Screw connection
Number of levels	1
Number of clamp positions per level	4
Connectable conductor cross section fine-strand with cable end sleeve	2.5mm2
Connectable conductor cross section fine-strand without cable end sleeve	2.5mm2
Connectable conductor cross section multi-wired	2.5mm2
Material insulation body	Thermoplastic
Connection position	Sideways
Rated current In	135A
Brand	MOREK
SKU	591164
EAN	4744397014030
