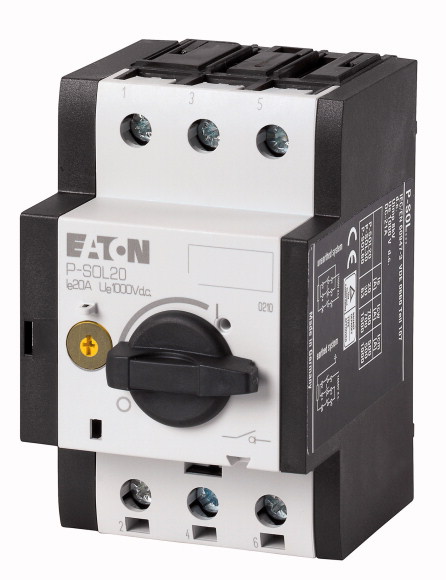

P-SOL20 ISOLATING SWITCH PV 20A 2P 3.2M 1000V DC

Name: P-SOL20 ISOLATING SWITCH PV 20A 2P 3.2M 1000V DC
Brand: EATON
SKU: 646653
Availability: InStock

69,65 € VAT incl.

VAT incl. (21%)

RRP price: 156,95 €

Part No: 120934

Brand: EATON

4 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

P-SOL20 ISOLATING SWITCH PV 20A 2P 3.2M 1000V DC

Additional information

Weight	0,286 kg
Dimensions	94 × 82 × 60 mm
Rated operation power at AC-3, 400 V	0kW
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated permanent current Iu	20A
Number of poles	2
Rated operating voltage	690V
Conditioned rated short-circuit current Iq	0kA
Degree of protection (IP), front side	IP20
Number of auxiliary contacts as change-over contact	0
Number of switches	1
Type of electrical connection of main circuit	Clamp bracket
Type of control element	Turn button
Rated operation power at AC-23, 400 V	0kW
Rated short-time withstand current lcw	0.36kA
Colour control element	Black
Max. rated operation voltage Ue AC	1000V
Device construction	Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V	0A
Switching power at 400 V	20kW
Rated permanent current at AC-23, 400 V	0A
Degree of protection (NEMA)	Other
Brand	EATON
SKU	646653
EAN	4015081187645
