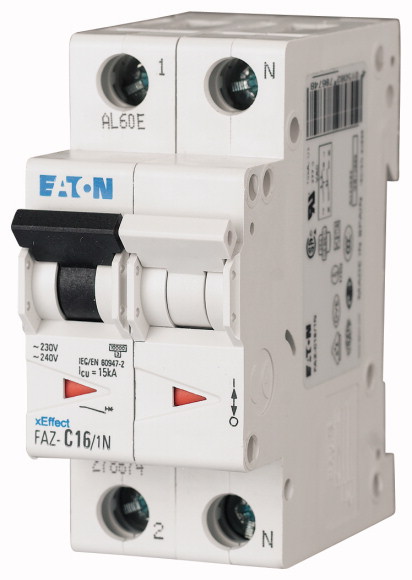

PHASE C 16A 1P+N OVERCURRENT CIRCUIT BREAKER C 16A 2M 15KA

Name: PHASE C 16A 1P+N OVERCURRENT CIRCUIT BREAKER C 16A 2M 15KA
Brand: EATON
SKU: 125459
Availability: InStock

16,09 € VAT incl.

VAT incl. (21%)

Part No: 278674

Brand: EATON

1 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Additional information

Weight	0,22 kg
Dimensions	85 × 35,4 × 73 mm
Frequency	50Hz
Voltage type	AC
Built-in depth	70.5mm
Rated current	16A
Rated voltage	230V
Release characteristic	C
Rated insulation voltage Ui	440V
Current limiting class	3
Over voltage category	3
Pollution degree	2
Width in number of modular spacings	2
Power loss	2.7W
Degree of protection (IP)	IP20
Connectable conductor cross section solid-core	1mm2
Connectable conductor cross section multi-wired	1mm2
Ambient temperature during operating	-25°C
Number of poles (total)	2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	15kA
Rated impulse withstand voltage Uimp	4kV
Brand	EATON
SKU	125459
EAN	4015082786748
