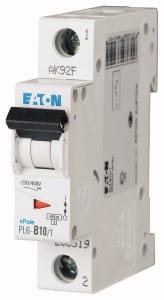

PL6-B 2/1 B 2A 1P OVERCURRENT CIRCUIT BREAKER B 2A 1M 6KA

Name: PL6-B 2/1 B 2A 1P OVERCURRENT CIRCUIT BREAKER B 2A 1M 6KA
Brand: EATON
SKU: 837192
Availability: InStock

11,20 € VAT incl.

VAT incl. (21%)

Part No: 286516

Brand: EATON

184 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Additional information

Weight	0,125 kg
Dimensions	75,5 × 17,5 × 80 mm
Voltage type	AC
Built-in depth	70.5mm
Rated current	2A
Rated voltage	230V
Frequency	50Hz
Release characteristic	B
Rated insulation voltage Ui	440V
Current limiting class	3
Over voltage category	3
Pollution degree	2
Width in number of modular spacings	1
Degree of protection (IP)	IP20
Number of protected poles	1
Connectable conductor cross section solid-core	1mm2
Connectable conductor cross section multi-wired	1mm2
Ambient temperature during operating	-25°C
Number of poles (total)	1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	0kA
Rated impulse withstand voltage Uimp	4kV
Brand	EATON
SKU	837192
EAN	4015082865160
